Product Description
1. Materials:
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.
2. Industry:
Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate, which can weld fine weld structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5. No consumables, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Model | WS-W2000 |
laser power | 2000w |
Laser wavelength | 1080nm |
Fiber laser source | Raycus, MAX, RECI |
Cable length | 5-8 meters |
Welding speed | 0-120mm/sec |
Cooling method | Water cooling |
Welding depth | <=2.5 mm |
Welding seam | <=0.2 mm |
Voltage | Single phase 220V |
Gas assist | Nitrogen |
Total power consumption | 7.5kw |
Working temperature | 15-35℃ |
Working humidity | <70% No condensation |
Packaging size | 120*70*148cm |
G.Weight | 260kgs |
| ◀ 3 in 1 handheld gun |
3 in 1 control system, it support different languages ▶ |
|

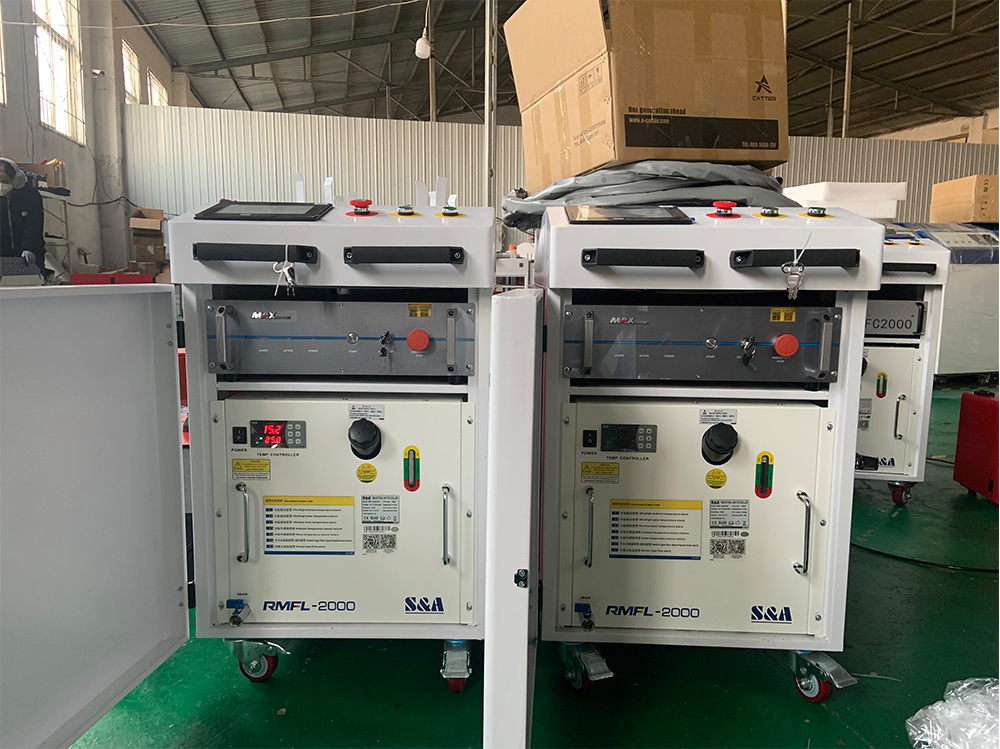

| ◀MAX laser source optional, water-cooling system |

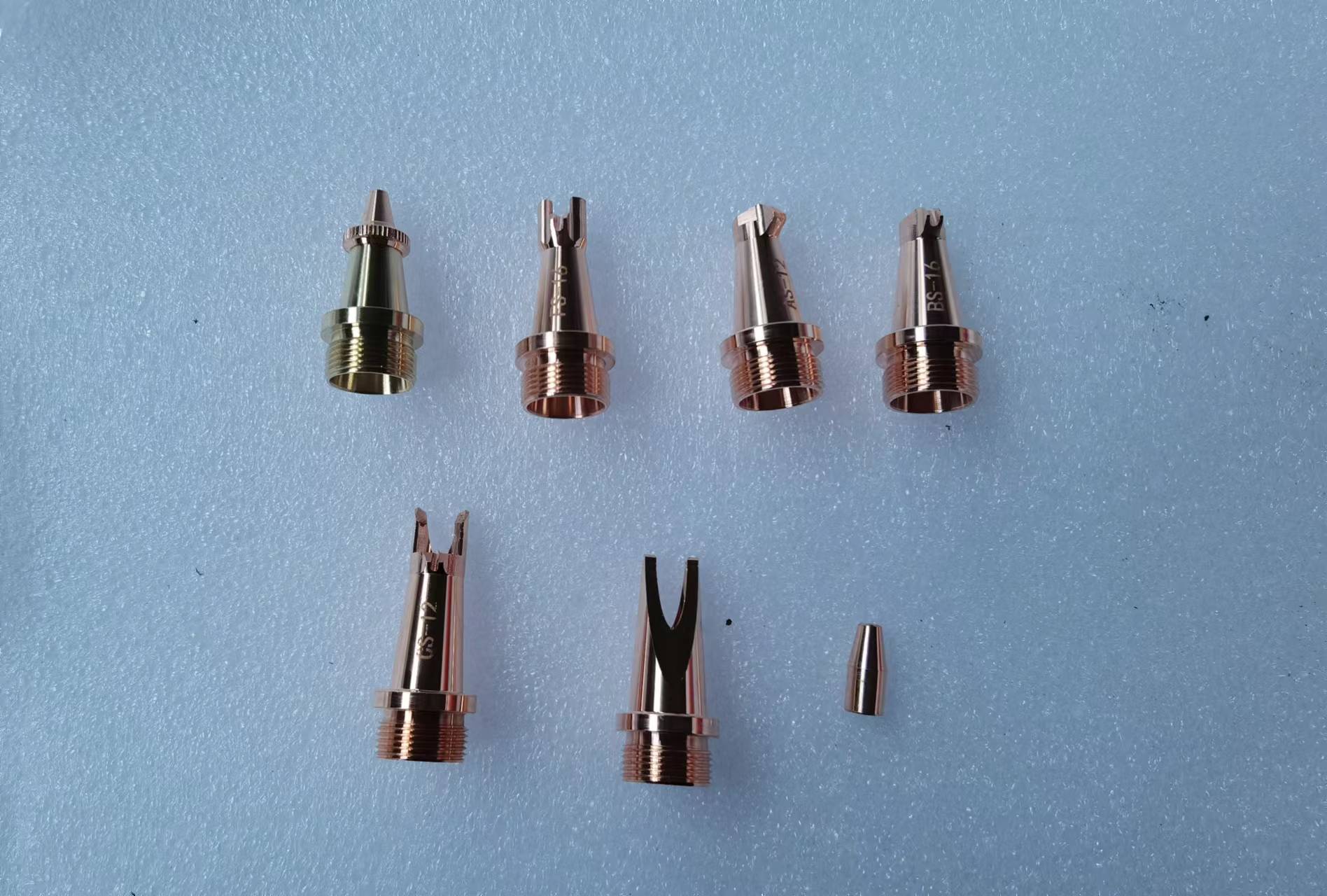

| Different nozzles for laser welding, cutting ▶ |  |

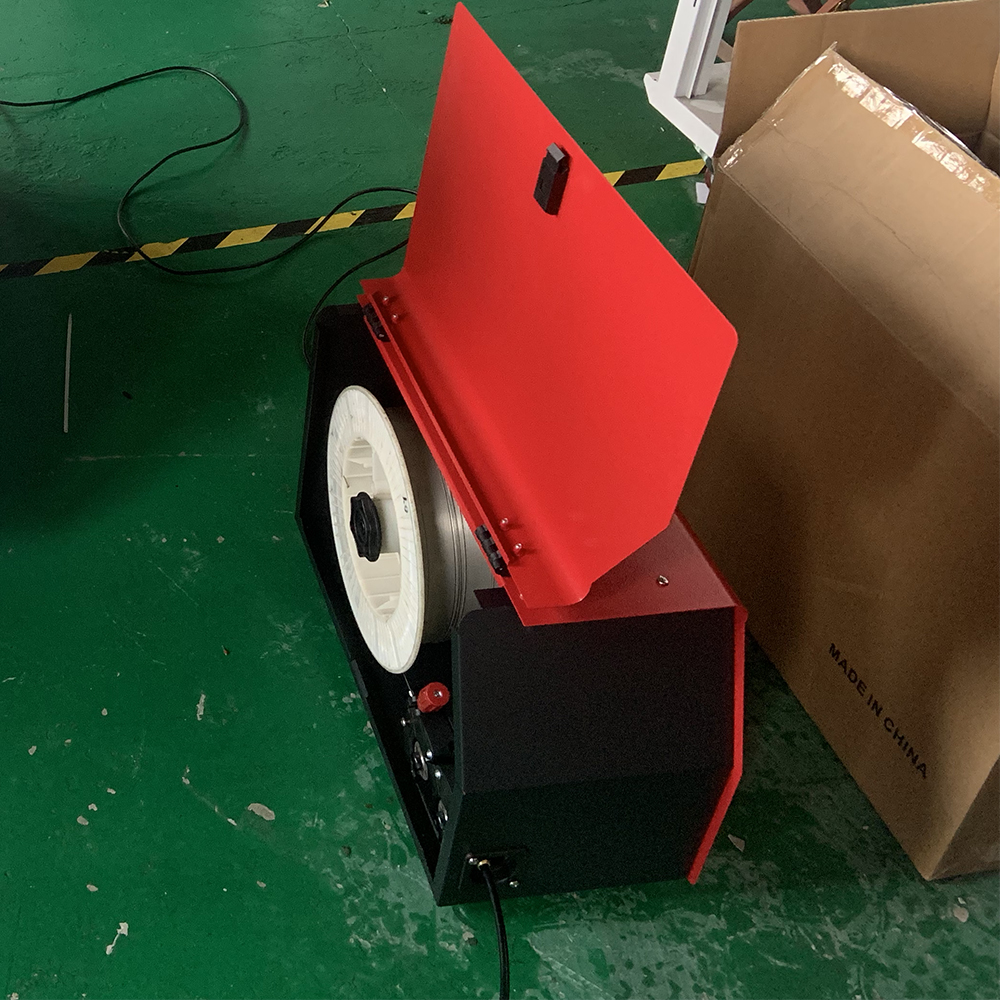

 | ◀Auto wire feeder |
Laser cleaning lens & cup▶ |
|
