Product Description
Control System | Fangling FX430A |
Driving System | Servo motor and drivers |
Power source | 160A |
Rotary chuck | Max diameter 600mm, length 12000mm |
Transmission system | Heavy train rail and rack pinon |
Working Voltage | 380V, 50HZ/60HZ |
Working Size | Diameter 50-600mm, length 12m or customized |
Cutting Speed | 0-9000mm/min |
Maximum Cutting Thickness | 0-25mm by 160A |
Power source | China Huayuan brand (63A /100A /120A /160A /200A /300A option) US Hypertherm option (45A /65A /85A /105A /125A /200A available) |
Working position accuracy | ±0.2mm |
File output mode | USB interface |
Command Code | G code |
◀ 4 Axis Plasma Cutting head | |
Advanced 4 Axis Fangling controller ▶ | |
◀Heavy load Rotary chuck | |

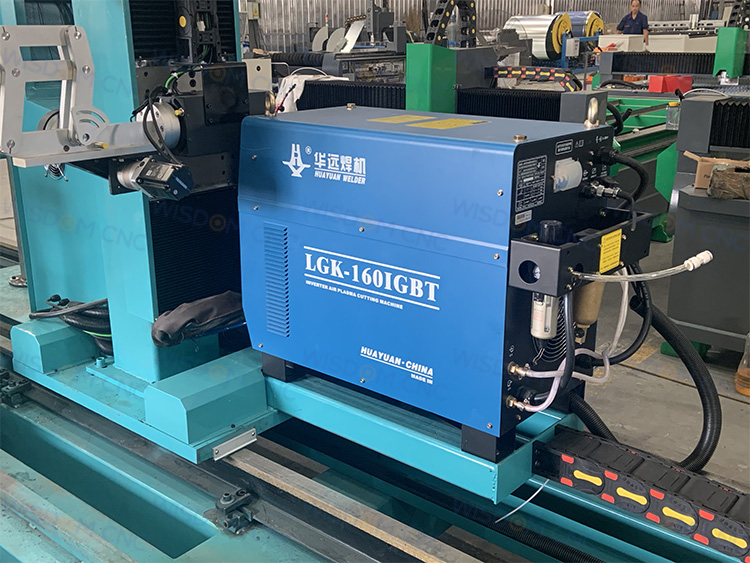

China Huayuan 160A plasma source▶ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN | LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm | Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |
