Product Description

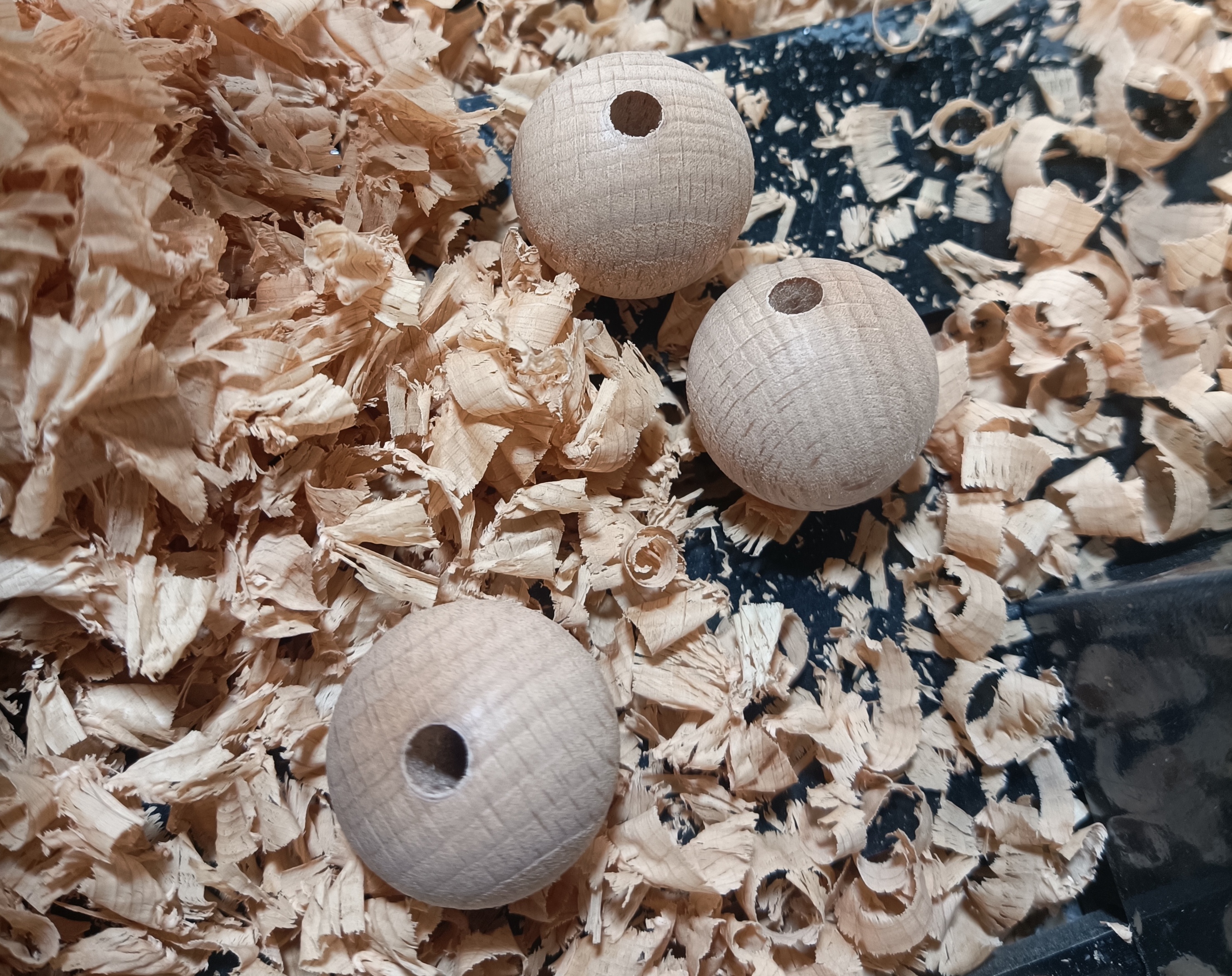

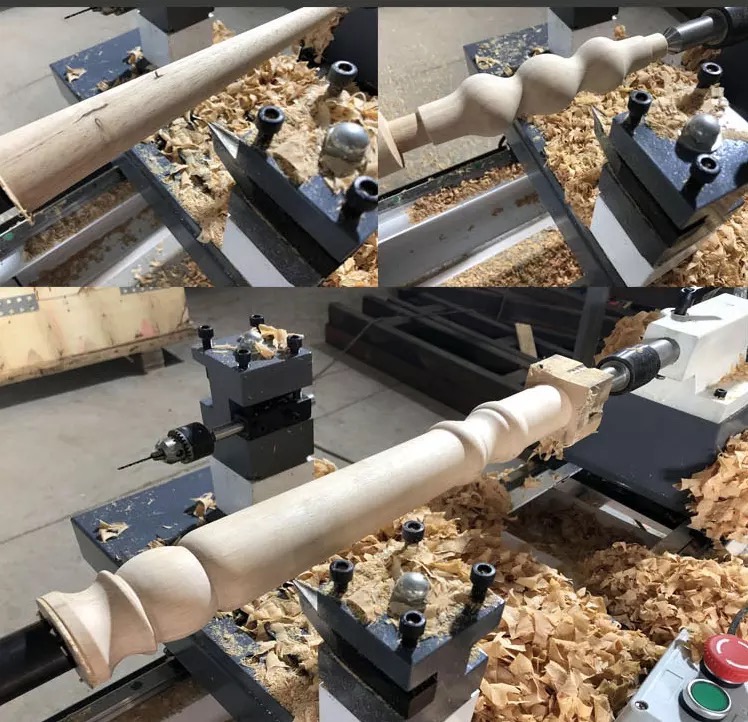

WS-L5025 wood lathe is used for turning wooden bowls, rolling pins, vases, drawer pulls, candle holders, magic wands, chess pieces, trivets, keepsake boxes, egg cups, beads, barrels, round boxes, drumsticks, wooden plates, wine cups, succulent planters, spurtles, christmas ornaments, salt and pepper shakers or mills, goblets, lamps, pens, bottle stoppers, lidded boxes, honey dippers, spatulas, spoons, ice cream scoops, gourd pendants, Buddha heads, magnifying glasses, mortars and pestles, antique pepper mills, furniture legs, bracelets, bangles, wooden toys, and handles for anything and everything.
1. Multi-functions of external cutting, internal cutting and drilling.
2. Fully automatic CNC controller.
3. One tools setting, fast turning cutting speed.
4. Customize different shape, different dimension for different work.
5. Upgrade driving motor and ball screw transmission, ensure long lifetime and good stability.
6. Super hard alloy lathe cutter ensure long lifespan and smooth cutting.
Model | WS-L5025 |
Max processing diameter | 250mm |
Max processing length | 500mm |
Feeding | Manual |
Operating system | Fully CNC automatic LCD Touch Screen Interface |
Drawing software | CAD |
Drawing format | *.dxf |
Transmission way | Square guide rail and ball screw transmission |
Driving system | Stepper motor and driver |
Cutter | Super hard alloy wood lathe cutter |
Motor power | 1500w |
Working voltage | 380V/220V |
Dimension | 152*92*114cm |
Weight | 550kgs |
