Product Description
Applied Materials: Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood.

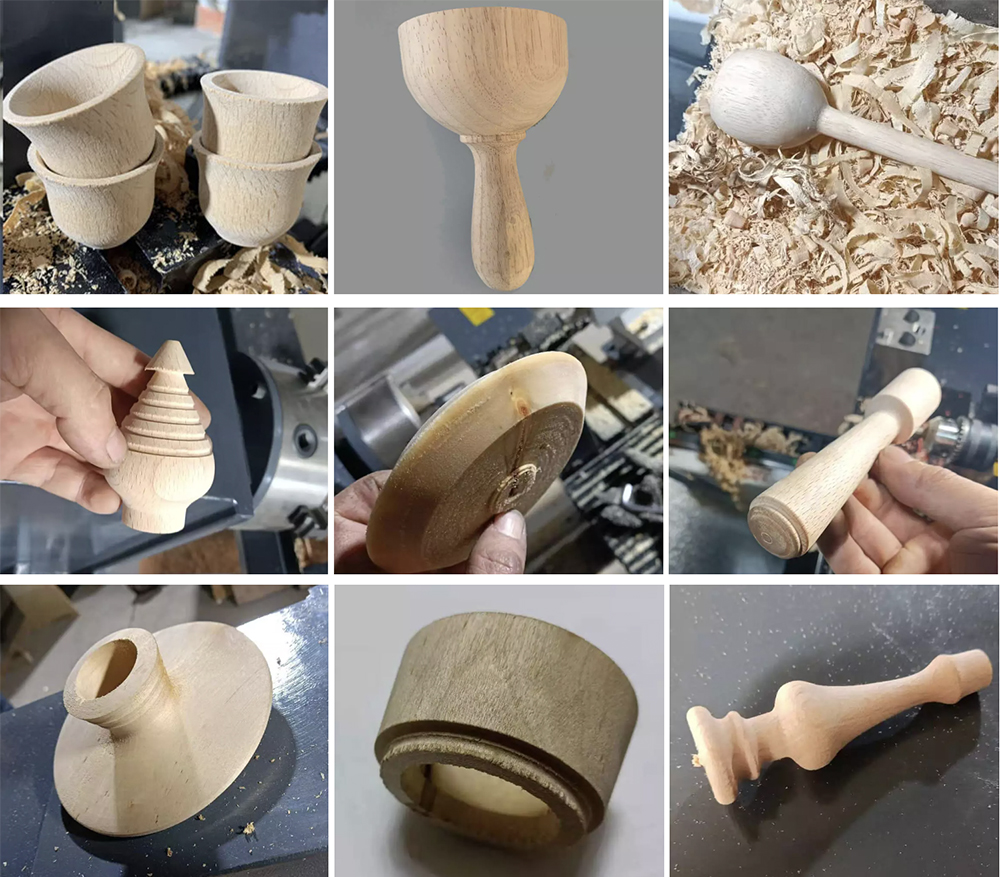

Applied Industries: Bead, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.
Wholly cast steel lathe bed.
Advanced LCD screen controller.
Different chuck could be customized according to wood stick dimension.
High precision square guide rail and ball screw transmission. Ensure long lifetime and good stability.
Adopt super hard alloy lathe cutter, ensure long lifespan and smooth cutting.
Model | WS-L50 or WS-L70 |
Max processing diameter | 50mm or 70mm |
Feeding | Automatic |
Processing precision | 0.01mm |
Operating system | Fully CNC automatic |
Compatible software | CAD, AI |
Supported format | *.dxf, *jpg, &png |
Transmission way | Square guide rail and ball screw transmission |
Driving system | Stepper motor and drivers |
Cutter | Super hard alloy wood lathe cutter |
Polishing device | Automatic |
Working voltage | 380V or 220V 3phase |
Dimension | 190*134*100cm |
Weight | 650kgs |

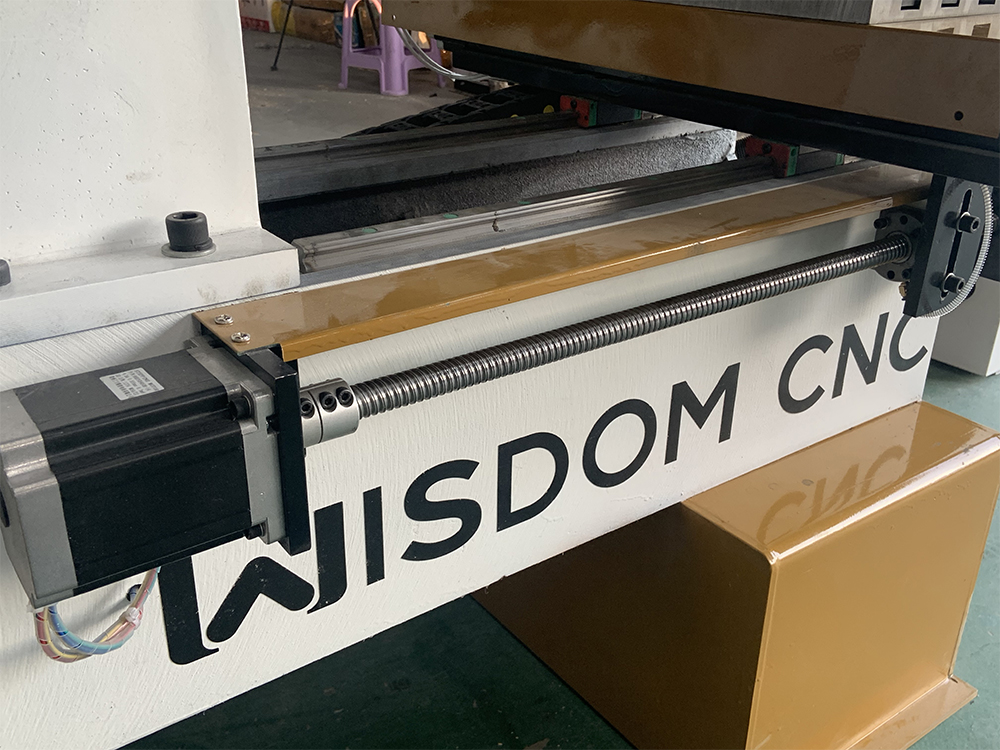

High precision ball screw transmission ▶ |  |

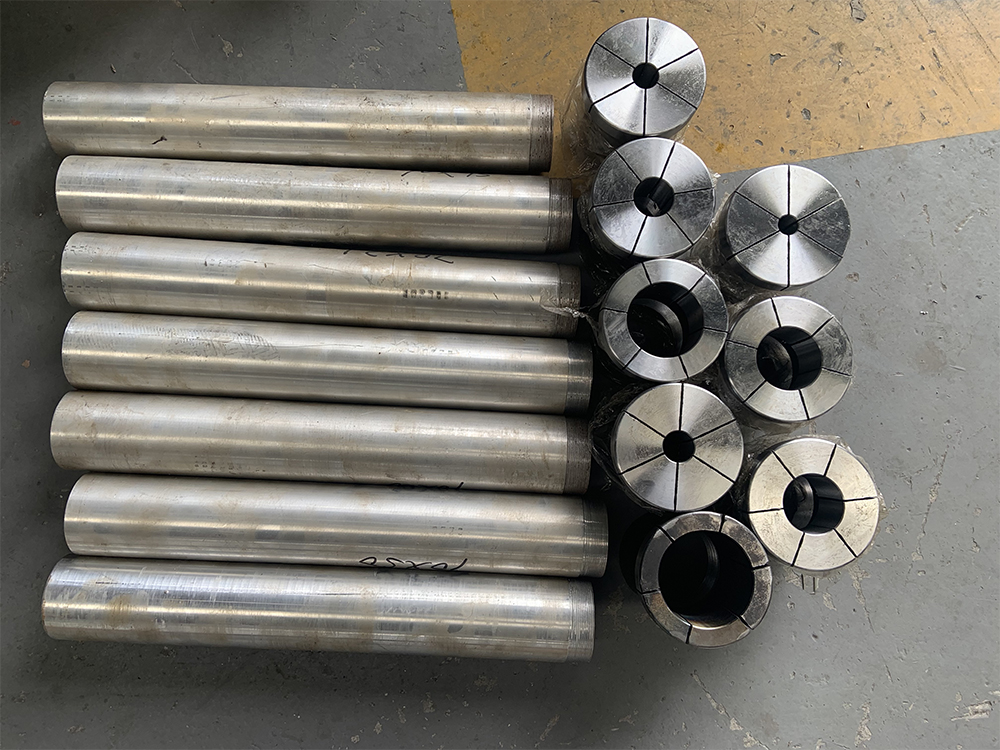

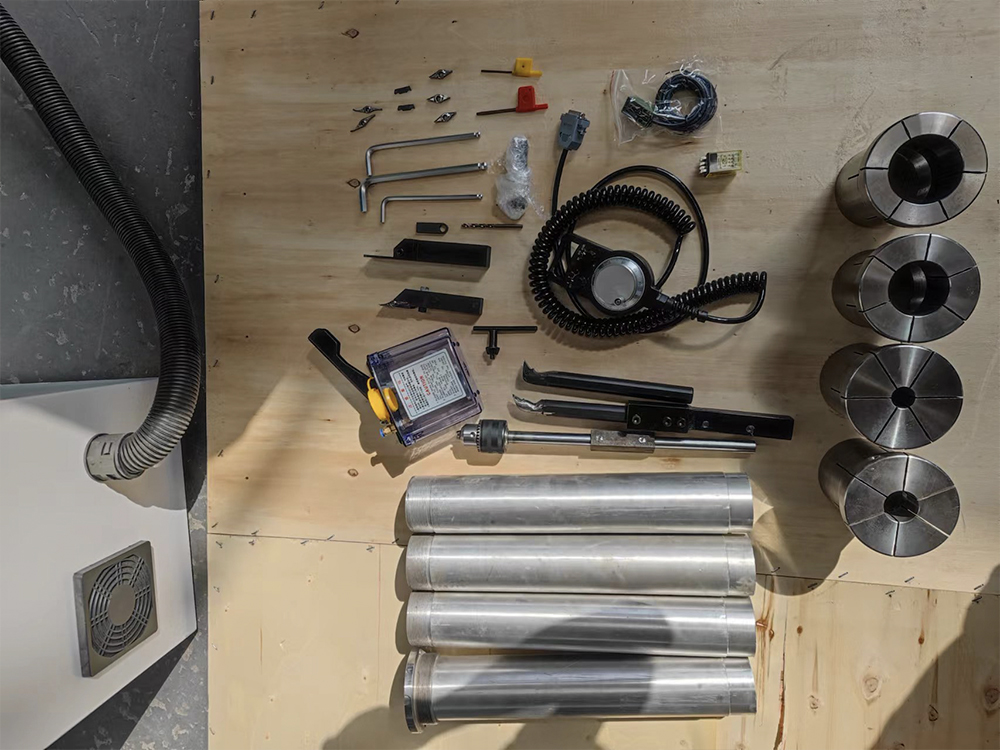

 | ◀ Customized rotary chucks, suitable for different size wood stick |

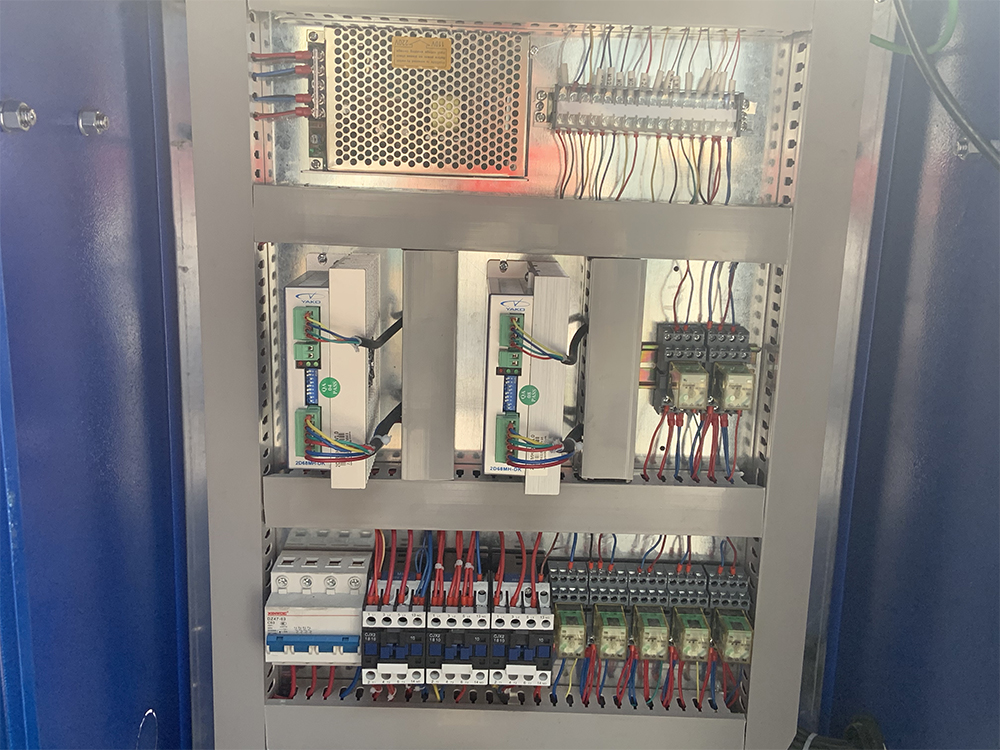

Electrical control cabinet ▶ |  |
| ◀ Automatic functional polishing device |
| Functional automatic feeding pneumatic rotary chuck ▶ | |

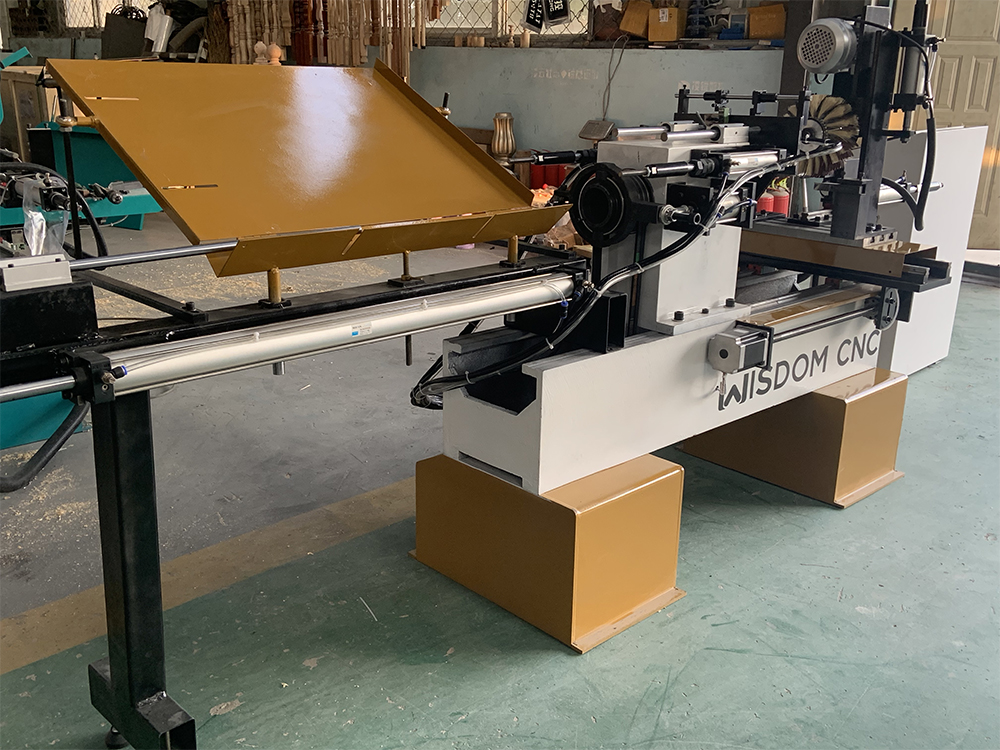

 | ◀ Automatic feeding base, storage area, width 60cm *length 80cm |

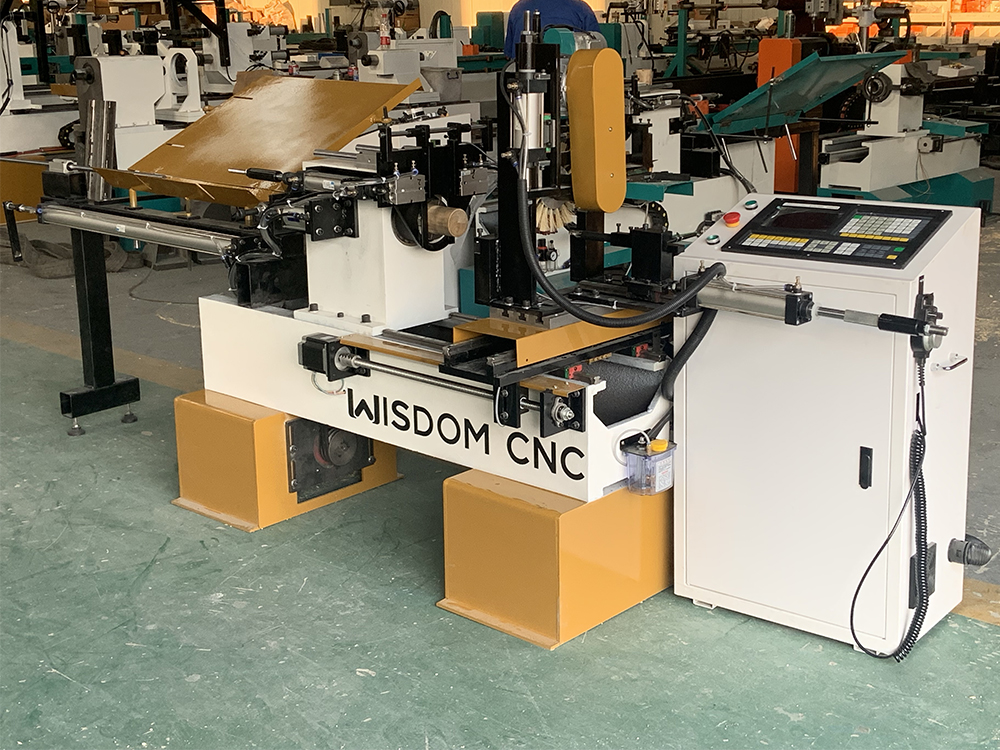

| Advanced LCD Screen Controller ▶ | |
