Product Description
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

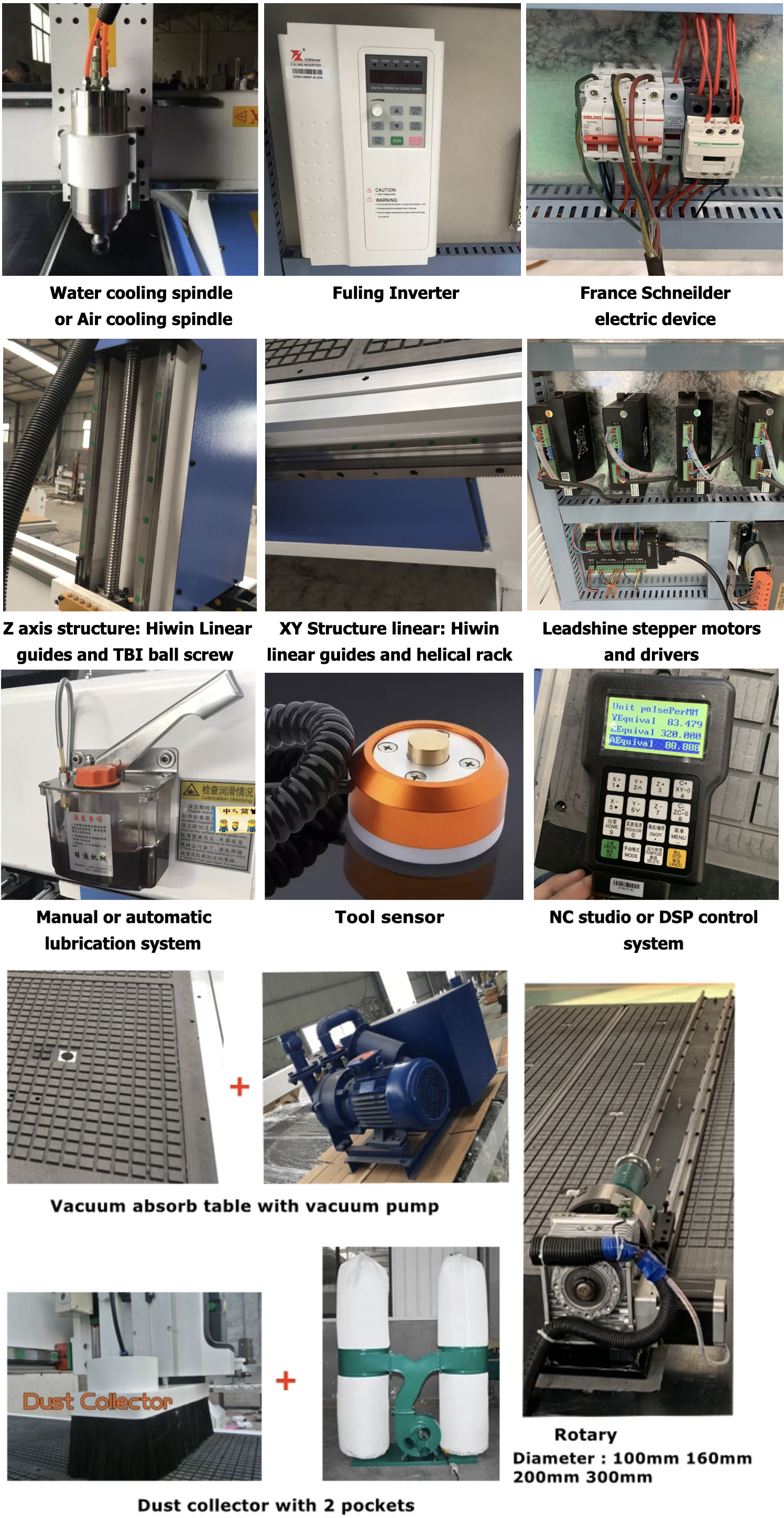

1. High temperature tempering treatment, welded steel tube T type machine bed and T type gantry, high rigidity, bearing strength better.
2. Control system: DSP handle control, support offline operation, even there is sudden electricity power-off, you needn't reset from beginning.
3. Guide rail: HIWIN linear rail from Taiwan, smooth and precise transmission, low noise, lifetime is 10 times longer than common rail way.
4. Working table: Strong vacuum table match with vacuum pump, big suction to fix materials.
5. Adopt servo motor, ensure good running stability and long service time.
6. Adopt HQD air-cooling spindle, more powerful and popular use in CNC woodworking industry.
7. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
Rotary attachment
ATC (auto tools changer)
Oil mist sprayer system
Water groove table
Germany Becker pump
Model | WS-1325 | |
Working area | 1300x2500mm | |
Spindle power | 3.5KW HQD air-cooling | |
Spindle speed | 0~18000rpm/min | |
Inverter | 3.7kw Fuling brand | |
Driving system | Servo motor and drivers | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | DSP handle control system | |
Dust collector | 3.0kw | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | Vacuum + T-slot fixing | |
Lathe bed | Thicken welded steel tube | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 48000mm/min | |
Max Working speed | 24000mm/min | |
Working voltage | 380v 220v/ 50/60HZ | |
Packing
