Product Description
▷ Processing 2000x4000mm flat panel size.
▷ Adopt top quality 6.0kw Italy HSD air-cooling spindle, long service time and no maintenance.
▷ 4 sets Japan Yaskawa Servo motor and drivers, ensure good running stability.
▷ Automatic tool calibration easy and accurate “Z” zero position.
▷ Combined vaccum and T-Slot table, fix materials tightly.
▷ Taiwan HIWIN square guide rail and rack pinion tranmission.
▷ DSP controller with all industry standard CAD/CAM software.
Model | WS-2030 | WS-2040 |
Working area | 2000x3000mm 2000x4000mm | |
Spindle power | 4.5kw China HQD water-ooling | 6.0kw Italy HSD air-cooling |
Spindle speed | 0~24000rpm/min | |
Inverter | 5.5kw | 6.0kw |
Driving system | Yaskawa Servo motor and drivers | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | DSP A11 control system | |
Dust collector | 3.0kw with double bags | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | Vacuum +T-slot fixing | |
Lathe bed | Thicken steel tube | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 48000mm/min | |
Max Working speed | 24000mm/min | |
Working voltage | 380v 220v/ 50/60HZ | |
2040 CNC Router Machine details and features:

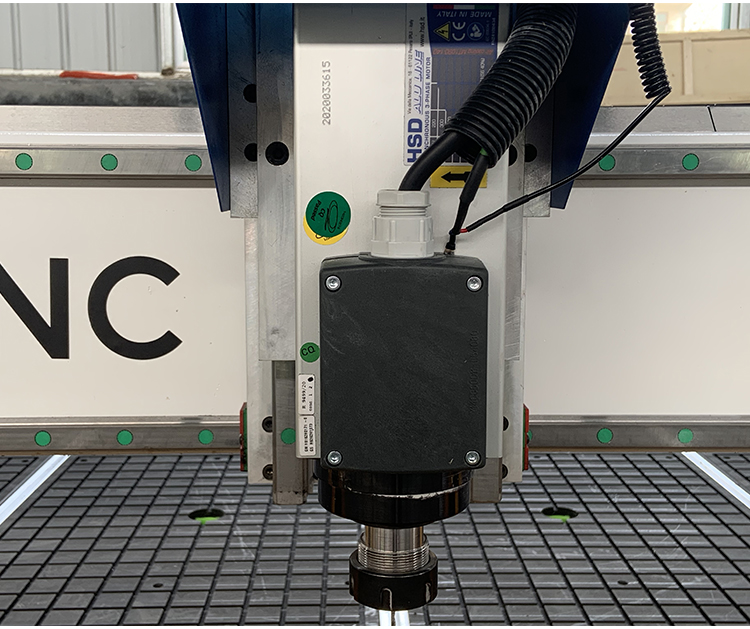

| ◀ 6KW Italy HSD air-cooling spindle, powerful and high cutting efficiency |
Press roller to keep big size panel flat▶ |  |

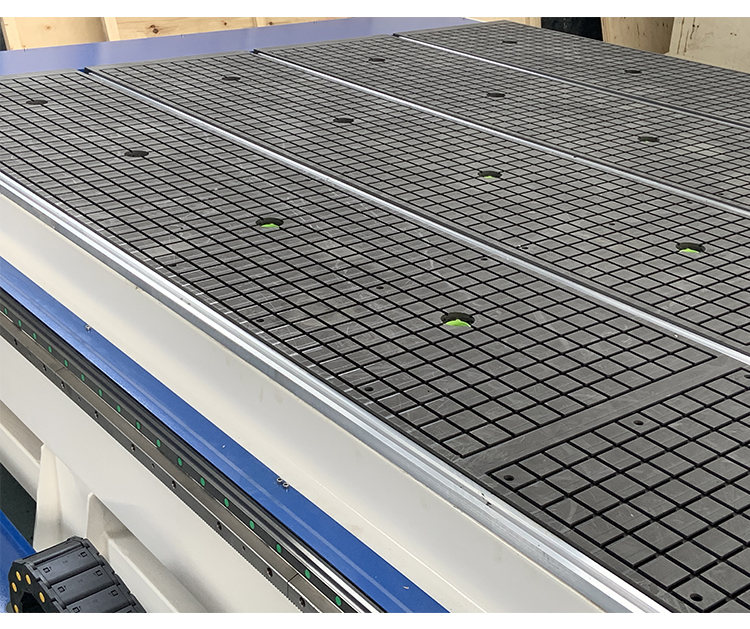

 | ◀Vacuum table and T-slot Ensure good vacuum obsorption and materials fixing |

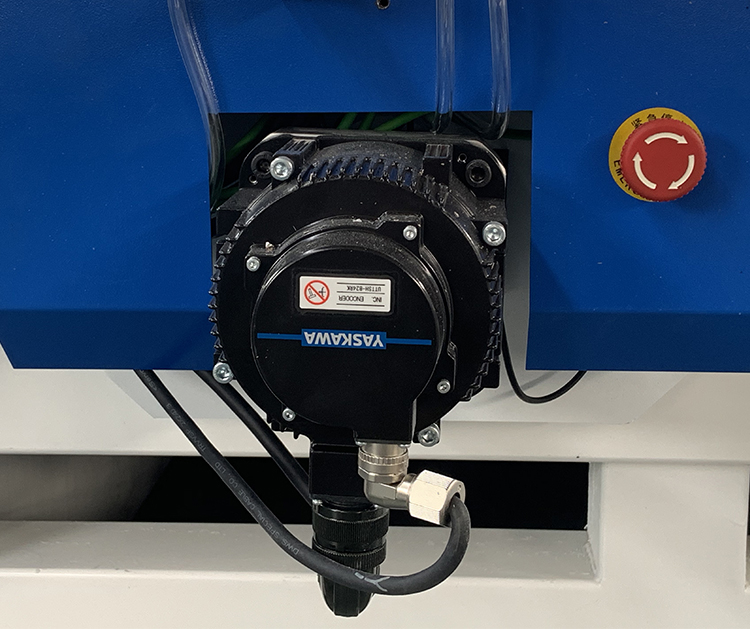

Japan Yaskawa Servo motor▶ Ensure good running stability and high working performance. |  |
To get more 2040 cnc router machine details and wood cnc router price, please feel free to communicate with us by email or whatsapp.
Optional parts of 2040 cnc router:
 |  |  |
| ATC (auto tools changer) | 4th axis rotary attachment | Taiwan Syntec control system |
What materials can be processed by 2040 cnc router machine?
| Wood/plywood/mdf | √ |
| Acrylic/plastic/double-color board/PVC | √ |
| ACP (aluminum composite panel)/APL | √ |
| Foam/Styrofoam | √ |
What's the design can be processed by 2040 cnc router machine？
