WS-F30
110x110mm
EZCAD
2D/3D
Product Description
WS-F30 Portable Fiber Laser Marking Machine For Metal Parts
WS-F30 Portable Fiber Laser Marking Machine 30W Description:
Our laser marking machine adopts the best quality fiber laser source in the world. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.
The portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable.
WS-F30 Portable Fiber Laser Marking Machine 30W Application Materials
Fiber laser marking machine is suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Iitanium etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.
WS-F30 Portable Fiber Laser Marking Machine 30W Applicable industries
Phone keys, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, buckles cookware, stainless steel products and other industries.
Technical parameters | |
Laser Type | Fiber laser |
Laser Power | 20W /30W /50W /70W /100W |
Model | WS-F20 /WS-F30 /WS-F50 /WS-F70 /WS-F100 |
Laser Wavelength | 1064nm |
Marking Area | 110*110mm 200*200mm 300*300mm |
Marking Depth | ≤1.2mm |
Marking Speed | 10000mm/s |
Minimum Line Width | 0.012mm |
Minimum Character | 0.15mm |
Repeated Precision | ±0.003mm |
Life-span of Fiber Laser Module | 100000hours |
Beam Quality | M2 <1.5 |
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
Cooling Mode | Air cooling--Built-in |
Temperature of Operation Environment | 15℃~35℃ |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <400W |
Communication Interface | USB |
Machine Dimension/after package | 760*680*770mm |
Net Weight/gross weight | 70/100kg |
Optional | Rotary Device, Moving Table |

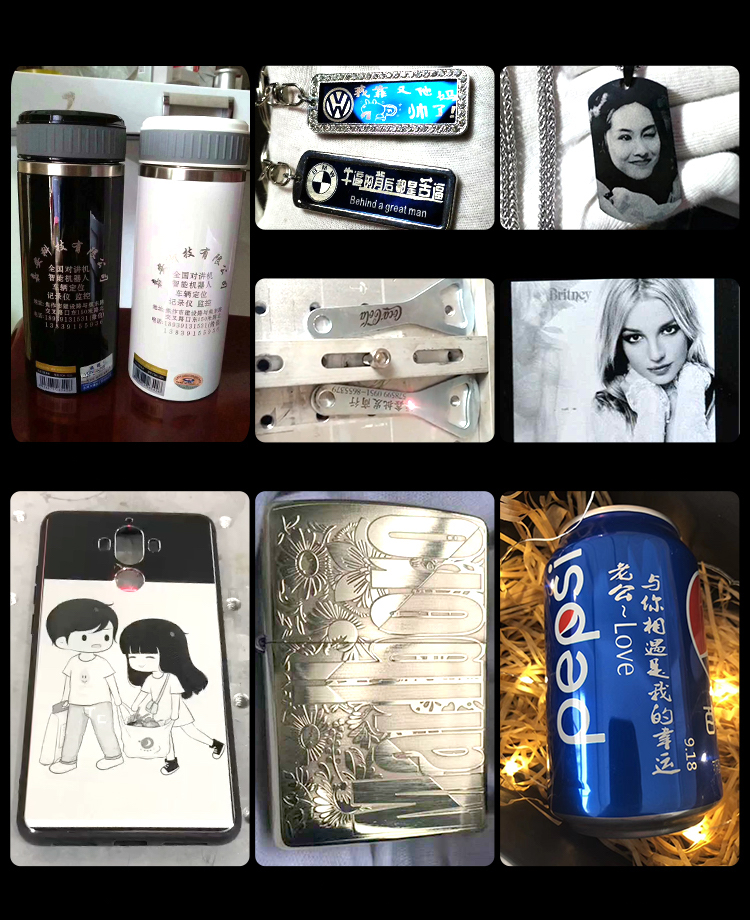

WS-F30 Portable Fiber Laser Marking Machine Working Samples:

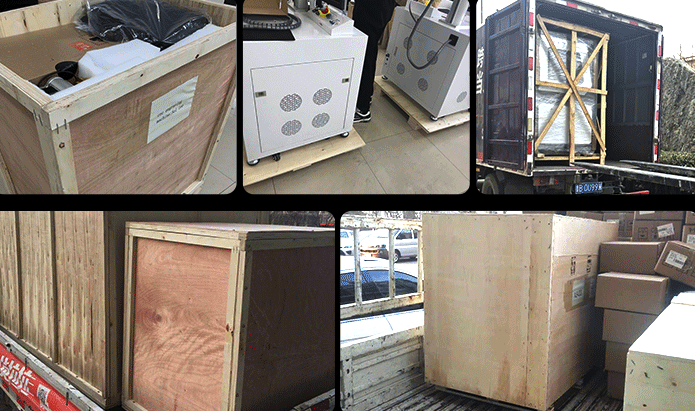

WS-F30 Portable Fiber Laser Marking Machine Packaging and Delivery:
About Wisdom CNC
Our Service
