WS-L1516-4S
5.5kw
Servo motor
LCD
160-300mm
1500mm
CAD
Product Description
Complete functions of wood milling broaching and grooving twisting hollowing engraving and carving.
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2. Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3. Adopt advanced LCD screen system with USB port which is easy for operation.
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel.
7. One time tool setting to finish the whole work piece.
| Model Number | WS-L1516-4S |
| Number of Axis | Double axis, four lathe cutter |
| Number of Spindle | Double horizontal engraving spindle One vertical engraving spindle |
| Max diameter | 160-300mm |
| Max length | 1500mm |
| Drive mode | Big Servo motor driving |
| Control system | Advanced LCD Screen controller |
| Transmission system | Hiwin Square guide rail and TBI ball screw |
| Air compressure | 0.6-0.8MPA |
| Power | 220V or 380V 50/60Hz |
Wood Lathe Machine details and features:

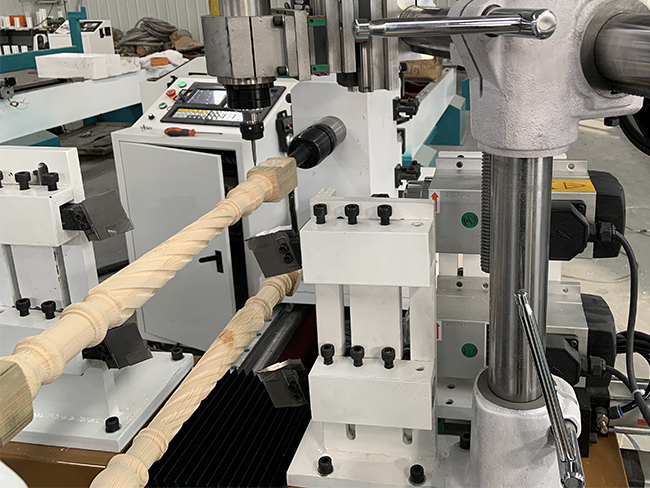

| ◀ Double axis and four lathe cutter It will process wood milling and broaching in high speed. |
Double horizontal engraving spindle and one 4 axis engraving spindle ▶ It will process wood cylinders grooving, twisting and engraving. |
|
| ◀Air cylinders and clamping device |
Advanced Wood Lathe Controller▶ It's with USB port, can read U-disk files directly, visible screen and easy to operation. |
|
For detailed specifications and working videos, please contact with us by email or whatsapp.

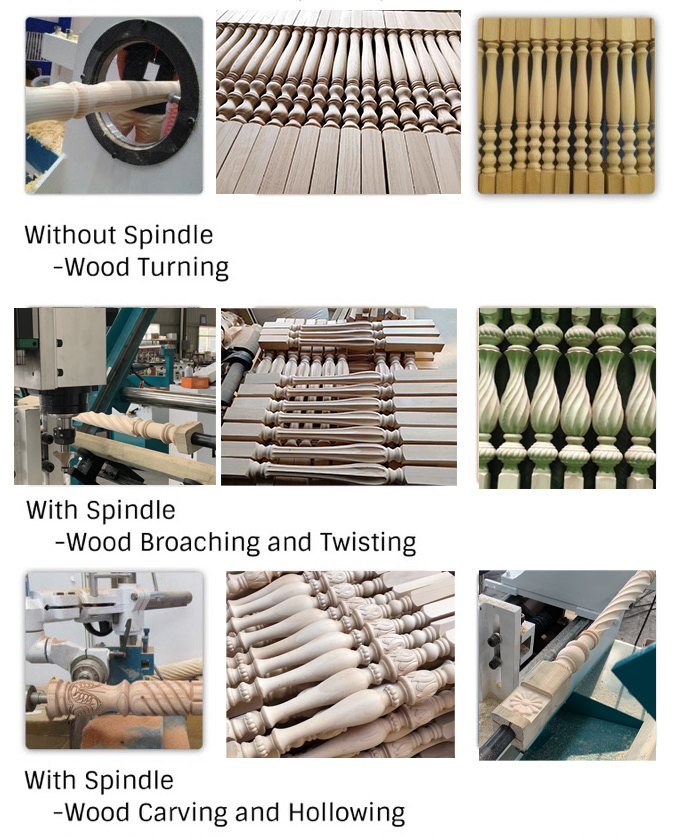

Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Cylinder Engraving | √ |
Wood Flat Engraving | √ |
Welcome to contact with us now to get detailed specifications, special discount and free accessories.

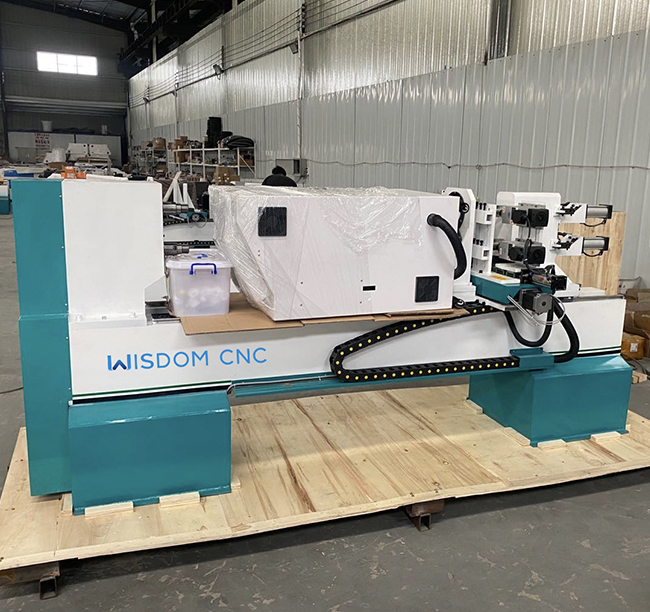

Packing and delivery
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
 |  |
