Product Description
1) Wood lathe cutter: for wood turning, make all regular wooden legs.
2) Wood router spindle: Milling+Twisting line+Hollowout+Engraving+Pulling groove+Carving
3) Wood Planer: make the irregular furniture wooden legs, chair legs with fast speed and high efficiency
4) Polisher is for polishing finished wood sample surface, keep it clean and smooth
Model | WS-L1530-4A |
Working size | Max diameter 300 length 1500mm Different size can be done as customized |
Spindle Power | 3 axis / 4 axis 3.5kw Aircooling spindle optional |
Functions | Turning and milling Automatic loading unloading Spindle engraving carving twisting grooving Planner cutting Sanding or Polishing |
Feeding device | Auto loading unloading materials |
Maximum feed rate | 200cm/min |
Minimum setting unit | 0.01cm |
Control system | Wisdom CNC LCD screen panel |
Support command | G code |
Air pressure | 0.6-0.8Mpa |
Tailstock | Pneumatic material clamping top |
Rail system | Taiwan Hiwin square guide rail Ball screw and rack pinion transmission |
Driving mode | Servo motor and drivers |
Working voltage | 380V or 220V 50/60HZ |
Software | CAD |
Packaging dimension | 360x156x170cm |
Weight | 1700KGS |
What's the usage and functions of this ATC wood lathe machine?
Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Engraving | √ |
Wood Planning | √ |
◀ Tool1: lathe cutter for turning and milling◀Tool2: 4 axis spindle for cylinder engraving and flat carving◀Tool3: planer for irregular wood planning◀Tool4: polisher for wood surface polishing | |
Auto feeding device ▶It will loading unloading materials automatically | |

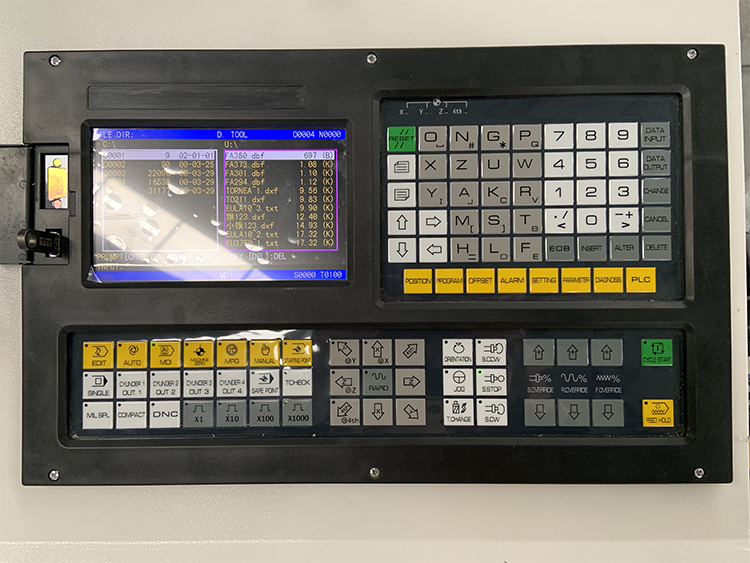

◀Advanced LCD wood lathe control systemVisible screen, show drawing line clearly Easy operation, support CAD software, transfer .dxf files to machine by USB directly. | |

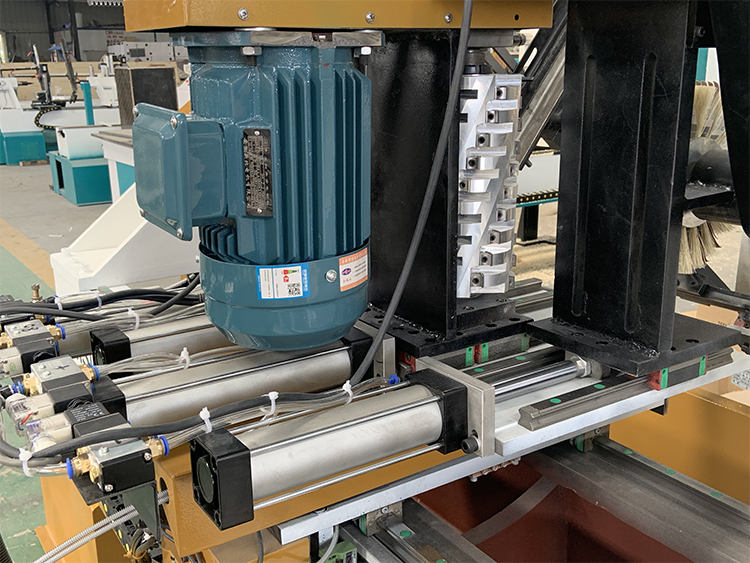

ATC auto changing with air cylinder system ▶ |

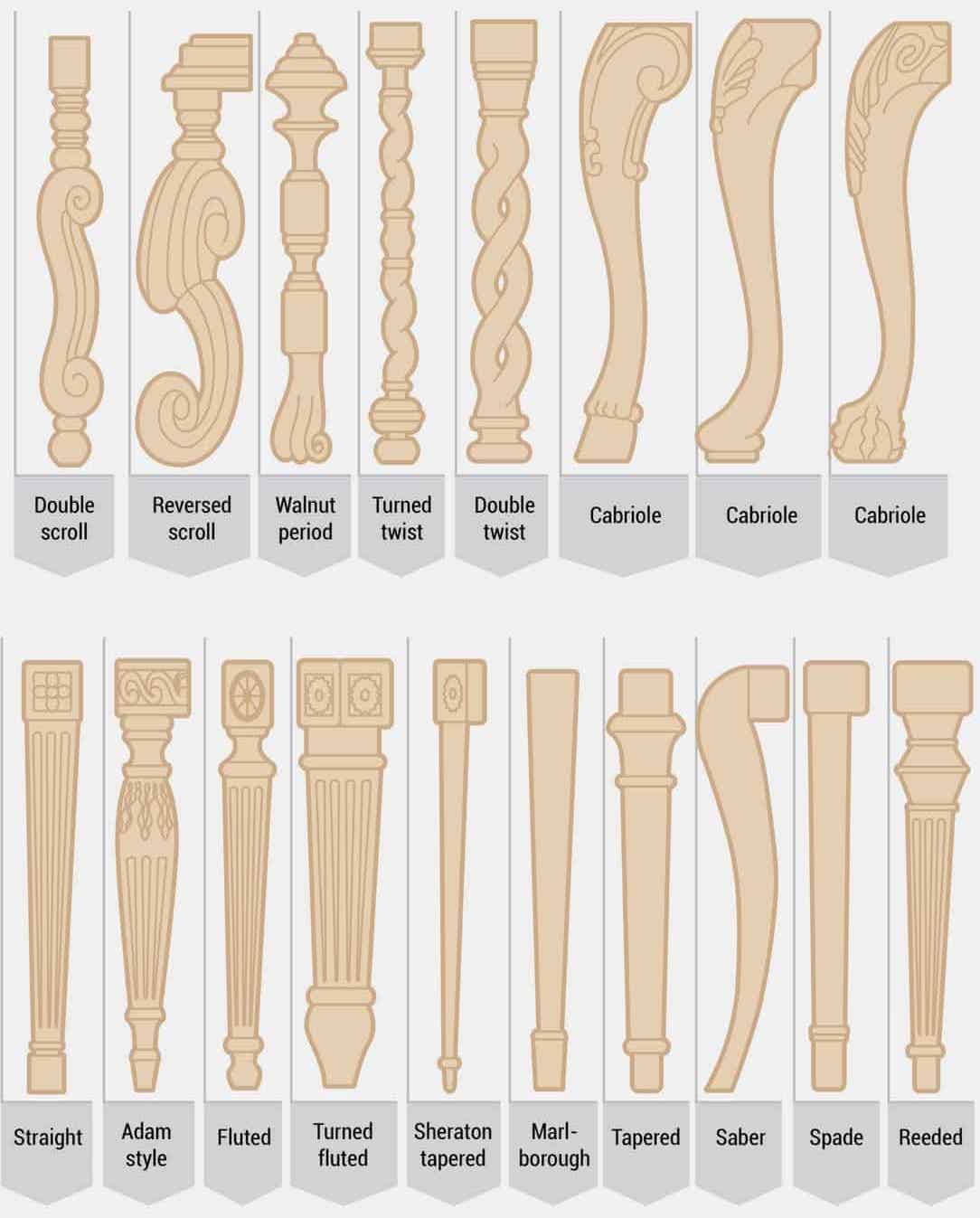

Working samples
If you want to get more details of cnc wood lathe machine, welcome to contact with us now for detailed specifications and special wood lathe machine price.
