Product Description
Used for turning various cylindrical workpieces, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs, Roman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts, chair stretchers, sofa and bun feet, bed rails, lamp posts, baseball bats, etc.
Model | WS-L1530-4A |
Max turning diameter | 300mm |
Max turning length | 1500mm |
Number of axis | Single axis |
Max feed rate | 200cm/min |
Max setting unit | 0.01cm |
Driving system | Big Servo motor |
Control system | LCD screen panel |
Spindle power | 3.5KW Air-cooling |
Spindle speed | 0-3000r/min |
Working speed | 5X60cm Standard staircase column 40s/pcs |
Power supply | AC380/220v 50/60HZ |

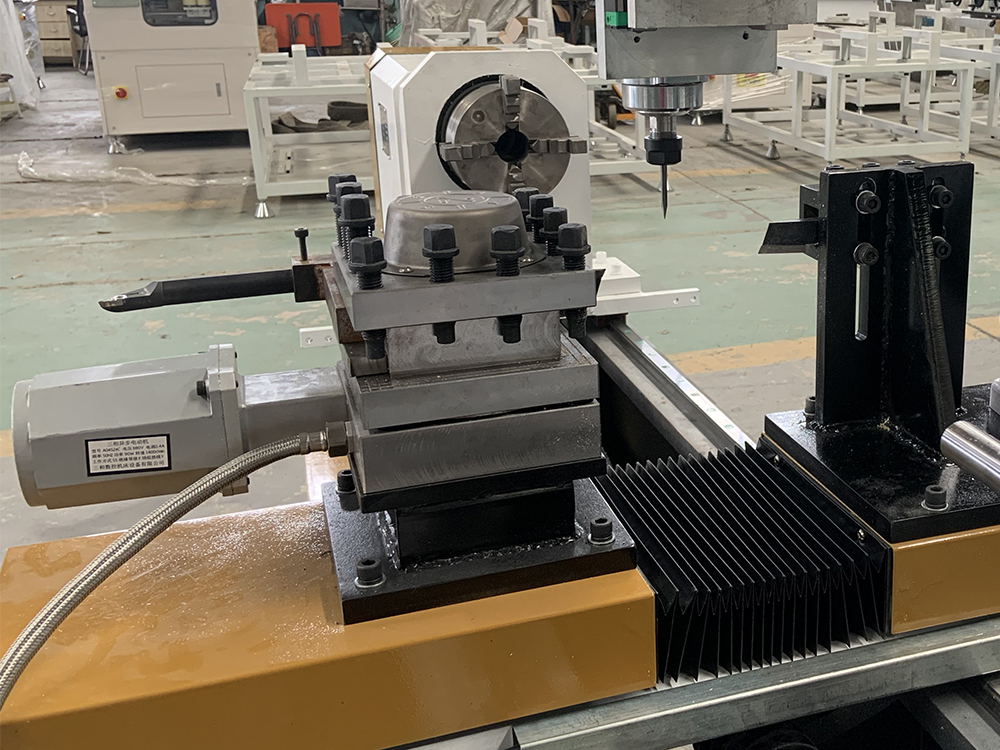

ATC worktable | Change different cutter tools for different work |
◀ Double lathe cutter It will process wood turning and milling in fast speed. | |
ATC (Auto tools changer) ▶ It will process different functions by changing different cutter tools. | |

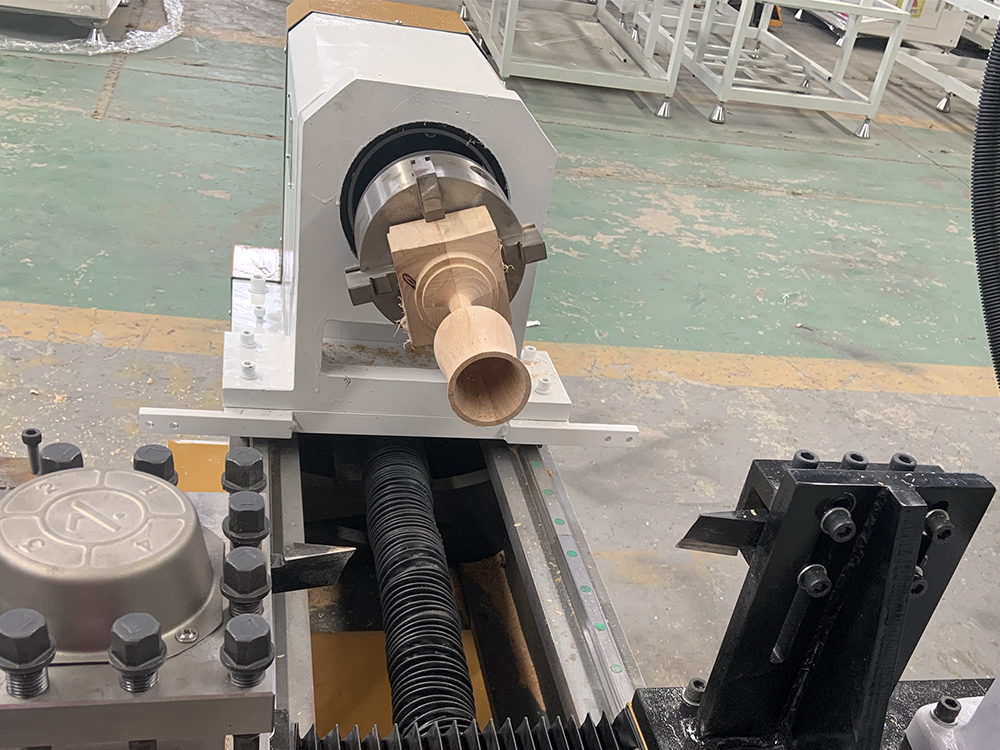

◀Rotary chuck Fix round materials such as wood bowls, cups etc. Holes making. | |
4 axis engraving spindle▶ For cnc engraving carving grooving twisting etc. |
Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Cylinder Engraving | √ |
Inner Holes Making | √ |
4 Axis Wood Engraving | √ |
