Product Description

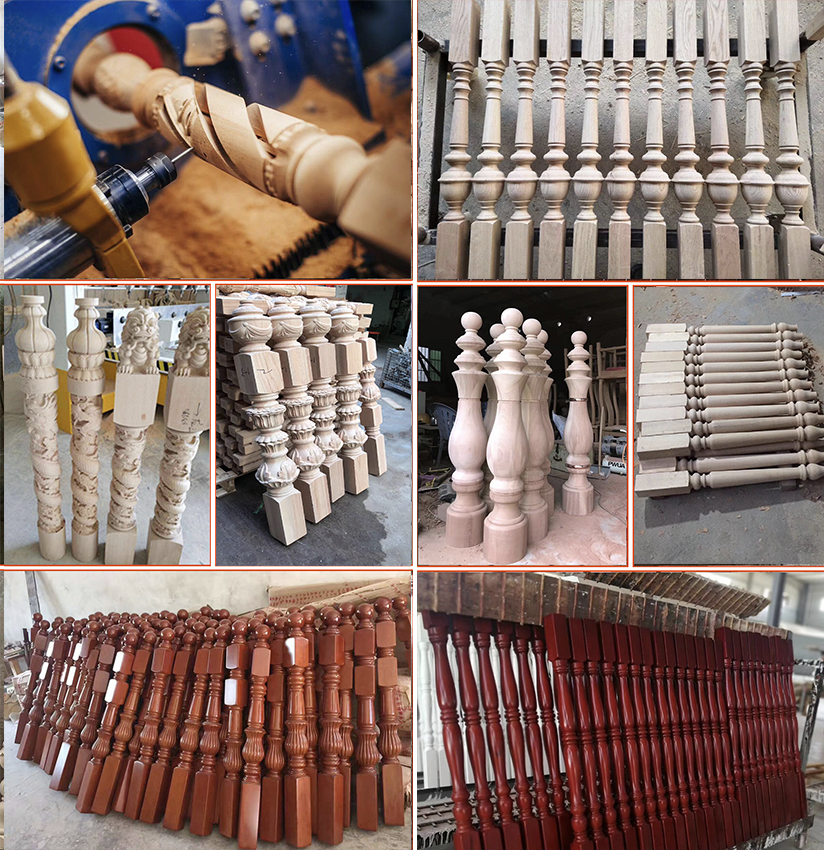

It is used for processing Staircases, stairway balusters, stairway newel posts; table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails; lamp posts; baseball bats, furnitures, etc.
1. Maximum working length is 1500mm, Max.turning diameter is 300mm.
2. The wood lathe machine has 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.
3. Adopt linear square rails and ball screws transmission, ensure high precision and long service time.
4. Advanced LCD control system: It is easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by USB.
5. Horizontal engraving spindle will process the function of grooving, twising line and engraving.
Model Number | WS-L1530S |
Number of Axis | Single axis |
Number of Blade | Double lathe cutter |
Max diameter | 300mm |
Max length | 1500mm |
Drive mode | Big Servo motor driving |
Control system | Advanced LCD Screen controller |
Transmission system | Hiwin Square guide rail and TBI ball screw |
Air compressure | 0.6-0.8MPA |
Power | 220V or 380V 50/60Hz |

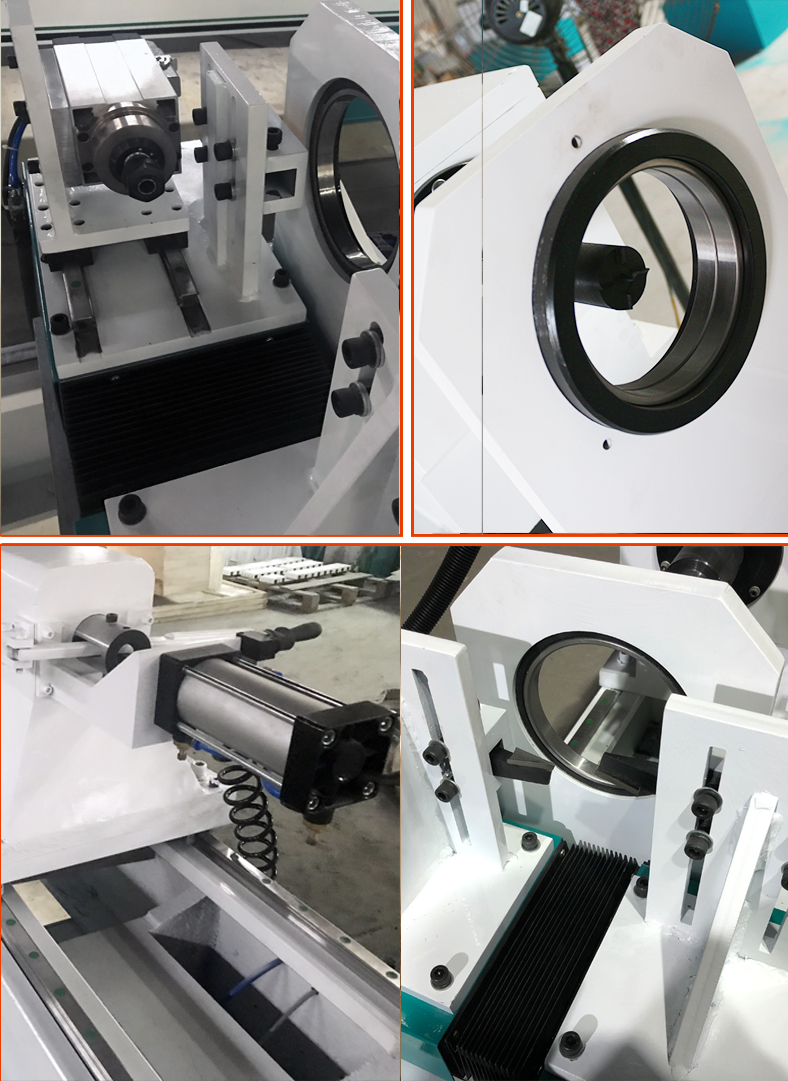

Wood Lathe Machine details:
What usage /functions can be processed by wood lathe machine?
Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Cylinder Engraving | √ |
Wood Flat Engraving | Option |
For detailed specifications and working videos, please contact with us by email or whatsapp.
Packing and delivery
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
Feedback
With several years trade development, Wisdom CNC had exported cnc wood lathe machine to more than 32 countries, and enjoyed good reputations and high comments from all over the world clients.
