WS-L1550
Stepper motor
160mm
500mm
CAD
Product Description
Mini wood lathe application: Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood, wood bead, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.
Model | WS-L1550 |
processing diameter | 5-160mm |
Processing max length | 500mm |
Drilling | With (can change into turning thimble) |
Processing precision | 0.01mm |
Operating system | Special wood beads system |
Drawing software | CAD |
Drawing format | *.dxf |
Transmission way | TBI ballscrew guider Taiwan Hiwin/PMI square orbit |
Driving system | Stepper motor and driver |
cutter | Super hard alloy wood lathe cutter |
Whole machine power | 1.5KW |
Motor power | 750w |
Voltage | 220V /50HZ (110V /60HZ option) |
Packing size | 1470*930*870mm |
Gross weight | 220kgs |
 | ◀ Mini wood lathe rotary chuck |

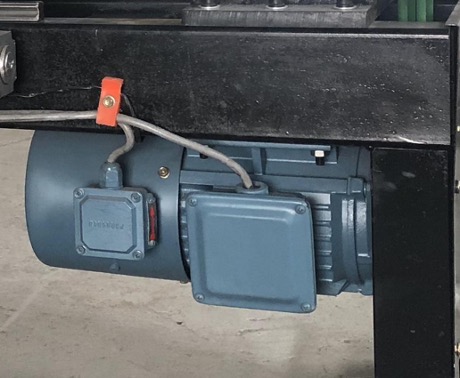

Powerful spindle motor, ensure high strength and long service time ▶ |  |
 | ◀ High quality ball screw transmission |
| Special mini wood lathe system ▶ |  |

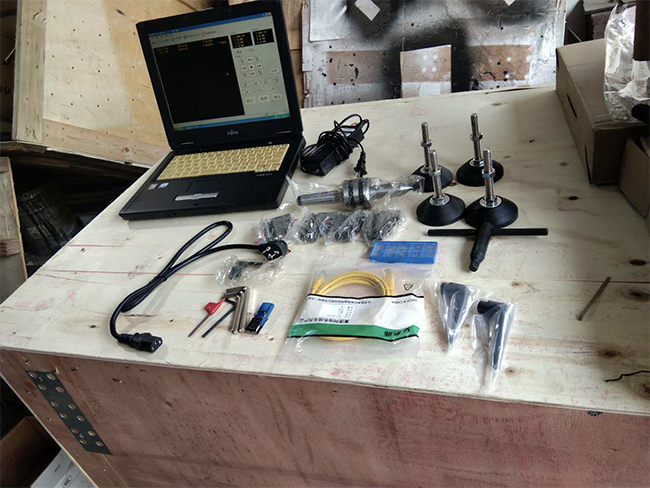

 | ◀ Free accessories |
If you want to know more details of this mini wood lathe, welcome to contact with us now for special mini wood lathe machine price.
