WS-L2550
Stepper motor
260mm
500mm
CAD
Product Description
Mini Wood Lathe is designed for wood turning works of bead, barrel, buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, etc.
Mini Wood Lathe Applied Materials: Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood.
Applied Industries: Bead, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.
Processing size: Max diameter 260mm, max length 500mm.
Make drill way: With automatic drill, computer controlled automatic concentric perforated.
Operate way: Direct input required in the software.Diameter can be simple parameters, pagoda gourd, directSelect the shape, size. No programming, easy to use.You can also design your own style, drawing of contour line, BMP, JPG image can be processed.
Imported square orbit and ball screw transmission. Long lifespan, high precision.
Cutter lifespan: Adopt super hard alloy CNC cutter(special for stainless steel),no wear for turning and milling red wood.
For example
1.Two sizes beads shall prevail, Lobular Rosewood automatic hole, 38 seconds per piece, 30 seconds without holes.
2.Phoebe play hole turning 25 seconds per piece, 19 seconds without punching.
3.5cm diameter handball, 2 minutes one piece.
4.5cm diameter and 11cm length hand-grip gourd needs 5 minutes.
Model | WS-L2550 Mini Wood Lathe |
processing diameter | 5-260mm |
Processing max length | 500mm |
Auto drilling | With (can change into turning thimble) |
Processing precision | 0.01mm |
Operating system | Special wood beads system |
Drawing software | CAD |
Drawing format | *.dxf |
Transmission way | Square guide rail and ball screw transmission |
Driving system | Stepper motor and driver |
cutter | Super hard alloy wood lathe cutter |
Whole machine power | 1.5KW |
Motor power | 750w |
Voltage | 220V 50/60HZ |
Packing size | 1470*930*870mm |
Gross weight | 220kgs |
External cutting | √ |
Internal cutting | √ |
Drilling | √ |
Hollowing | √ |
What's the main machine details and features?

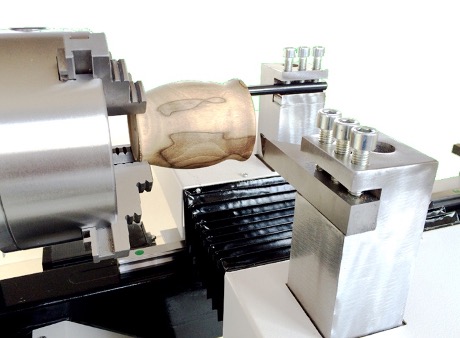

 | ◀ Mini wood lathe rotary chuck |

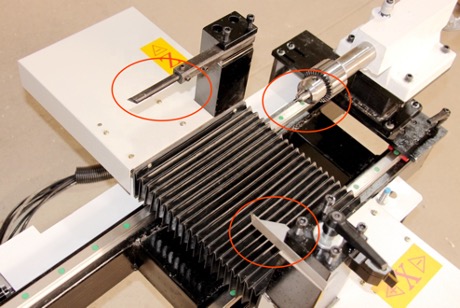

Multifunctions of external cutting, internal cutting, hollowing and drilling ▶ |  |

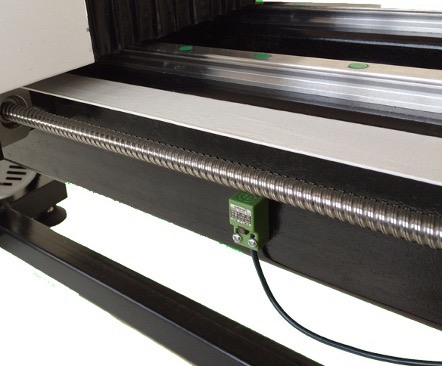

 | ◀ High quality ball screw transmission |

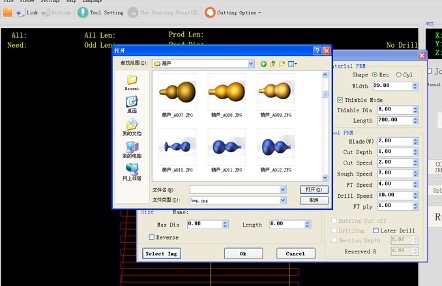

| Special mini wood lathe system ▶ |  |

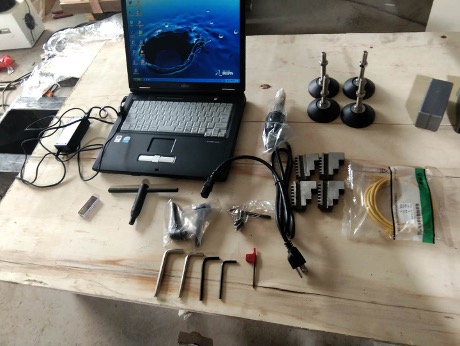

 | ◀ Free accessories |
Welcome to contact with us now for detailed specifications, special offer and free additional accessories.
Free drawinig
1. Computer numerical controlled. Free PC offered together with machine.
2. More than 800 kinds drawing gallery offered.
3. Professional wood beads machine control system, easy to operate.
4. Super quality hard alloy wood lathe cutter special for any kind of wood, with long lifespan.
5. Can designed in CAD according to your requirement.
6. High quality square guide rail and high precision ball screw transmission.
