Product Description
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
Model | WS-P1325R | WS-P1530R | WS-P2030R | WS-P2060R |
Working area | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x6000mm |
Rotary attachment | Diameter 200-300mm, length 2500mm, 3000mm, 6000mm | |||
Function | Metal plate and metal tube cutting | |||
Control System | Advanced Starfire Controller | |||
Transmission System | Rack Pinion And Hiwin Linear Rails | |||
Driving System | Stepper Motor and Drivers | |||
Max. Cutting Speed | 12000mm/Min | |||
Max. Travelling Speed | 20000mm/Min | |||
Working Voltage | 380V 220V/3ph 50/60HZ |
Metal Plasma Plate and Pipe Cutting Machine details and features:
◀ Rotary attachment This plasma cutting machine rotary attachment is used for cutting metal pipe and metal tube, diameter can be 200mm, 300mm, length can be same along with Y-axis. | |
Advanced Starfire controller ▶ It support different languages such as Chinese /English /RUSSIAN /Spainsh /French /Czech /Janpanese /Slovakian etc. Functional, intelligent and easy to operate. | |
◀Taiwan Hiwin Square guide rails Ensure high precision and running stability, long service time. | |

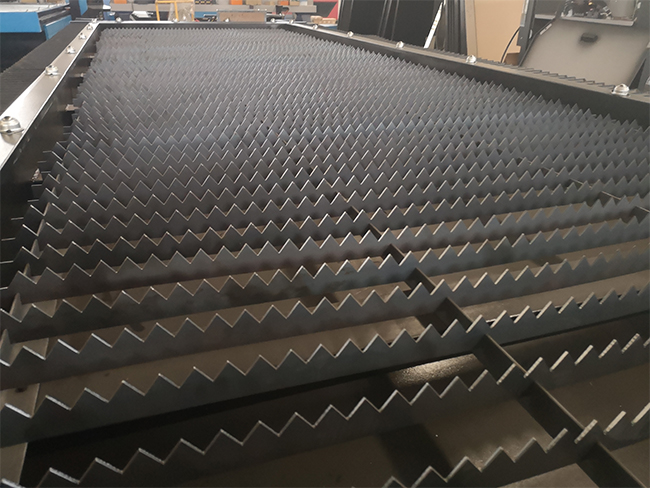

Sawtooth cutting table▶ It can reduce the touch surface of table and metal sheet as much as possible. |
For more machine details and specifications, please feel free to communicate with us by email or whatsapp.
Optional parts of this plasma cutting machine:

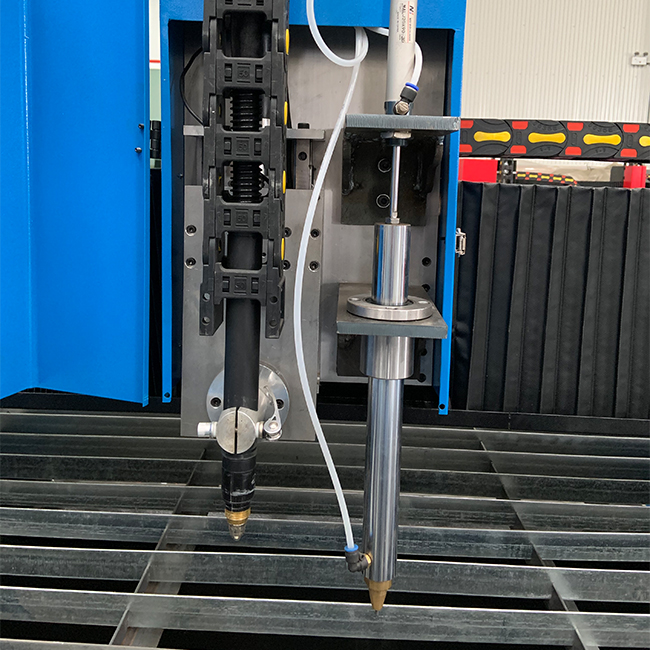

Flame cutting head | Marking head | Drilling head |
Steel | √ |
Stainless Steel | √ |
Carbon Steel | √ |
Iron | √ |
Aluminum | √ |
Titanium | √ |
Galvanized sheet | √ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN | LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm | Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |

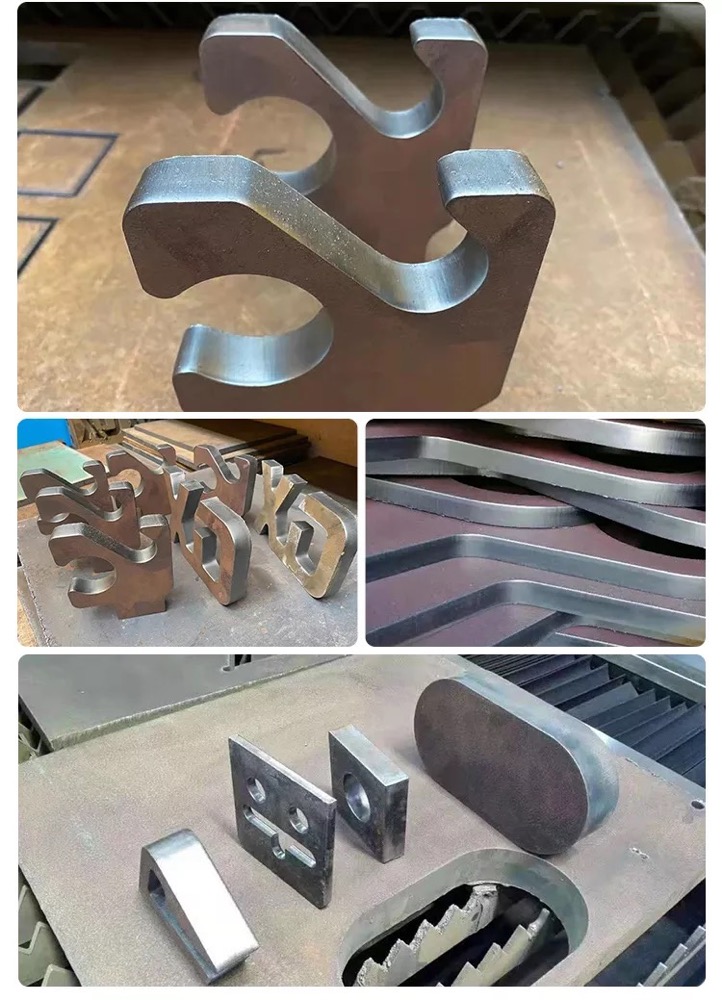

What's the design can be processed?
Welcome to contact with us now to get detailed specifications, special offer and free accessories.
Real Machine Photo
Most popular metal plasma pipe cutting machine include WS-P1325R and WS-P1530R, working size 1300x2500mm and 1500x3000mm. Applied for cutting metal plate and metal tube.
