Product Description
Control System | Fangling |
Driving System | Stepper motor and drivers |
Power source | China Huayuan LGK-200 |
Rotary attachment | Max diameter 400mm, length 6000mm |
Transmission system | HIWIN square guide rail and rack pinon |
THC | Automatic torch height controller |
Plasma torch | One set |
Flame torch | One set |
Drilling head | One set |
Marking head | One set |
Model | WS-P1560 |
Working Voltage | AC 220V/380V, 50HZ/60HZ |
Working Size | 1500mm*6000mm |
Cutting Speed | 0-12000mm/min |
Plasma Cutting Thickness | 0-30mm |
Flame Cutting Thickness | 20-200mm |
Power source | LGK-200 (Hypertherm brand option) |
Working position accuracy | ±0.1mm |
File output mode | USB interface |
Command Code | G code/*.MMG/*.PLT/*.eng |
| ◀ Multi-heads for plasma cutting, drilling and marking |
Advanced Fangling controller ▶ It support different languages such as Chinese /English /RUSSIAN /Spainsh /French /Czech /Janpanese /Slovakian etc. Functional, intelligent and easy to operate. |  |
| ◀Rotary attachment for metal tube/pipe cutting Max diameter 200-400mm, length 6000mm |

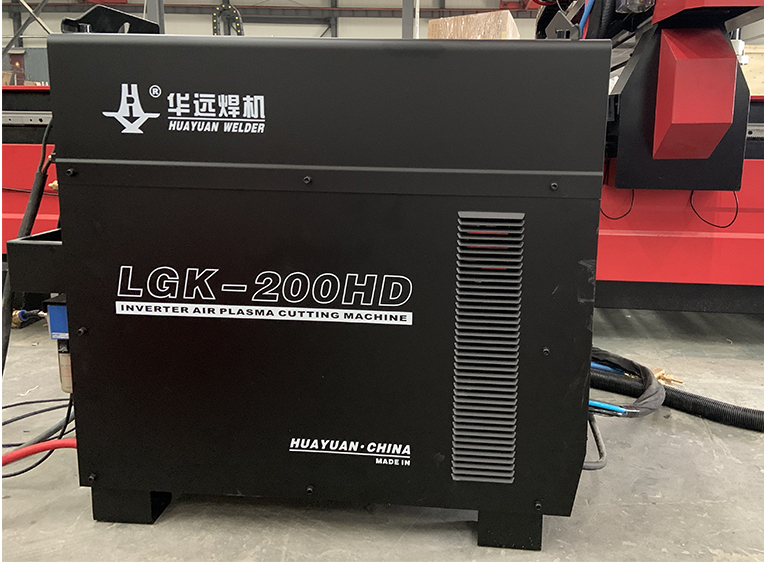

China LGK 200A plasma source▶ Powerful and high cutting efficiency. |
|
| ◀Sawtooth cutting table |
Steel | √ |
Stainless Steel | √ |
Carbon Steel | √ |
Iron | √ |
Aluminum | √ |
Titanium | √ |
Galvanized sheet | √ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN
| LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm
| Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |
Looking forward to serve and cooperate with you. Welcome to contact with us now to get special USD500 discount!
