Fastcam
Product Description
Control System | Fangling FX430B |
Driving System | Servo motor |
Power Supplier | China Huayuan |
Relay accessories | Schneider |
X Guide Rail | HIWIN square orbit |
THC( torch height controller ) | Automatic |
Cutting Torch Lifting Mode | Arc Voltage Height Controller |
Nesting Software | FASTCAM & TUBEMASTER |
Packing type | Standard plywood case |
Model | WS-P2060 |
Working Voltage | AC 220V/380V, 50HZ/60HZ |
Metal plate cutting dimension | 2*6mm |
Rotary chuck cutting dimension | Max diameter 300mm, length 6m |
Cutting Speed | 0-12000mm/min |
Plasma Cutting Thickness | 0-30mm |
Flame Cutting Thickness | 30-300mm |
Power source | 200A |
Working position accuracy | ±0.1mm |
File output mode | USB interface |
Command Code | G code |

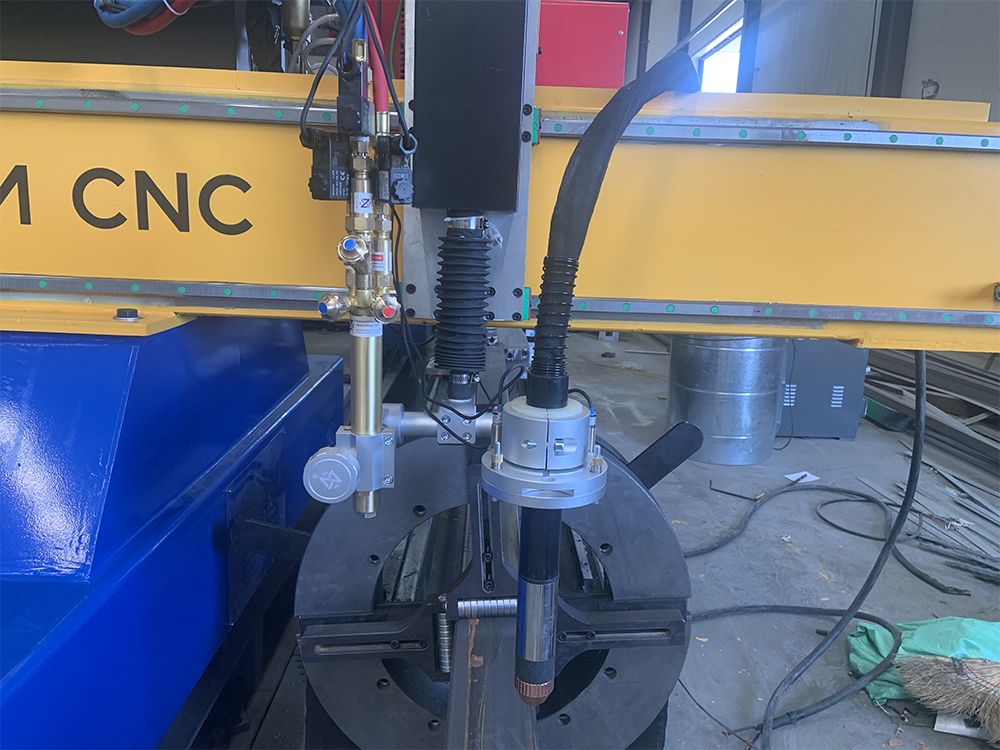

◀ Plasma cutting & Oxyflame cutting head | |
Advanced Fangling FX430B controller ▶ | |
◀Rotary chuck for round tube and square pipe cutting | |

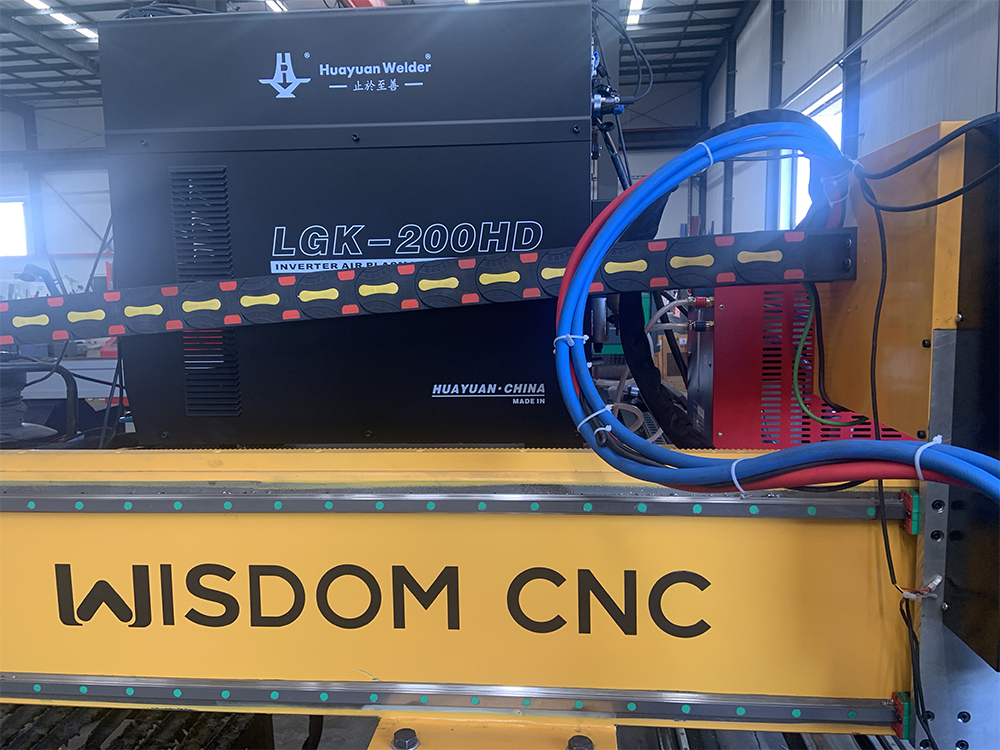

China 200A plasma power source, cutting 0-30mm ▶ | |

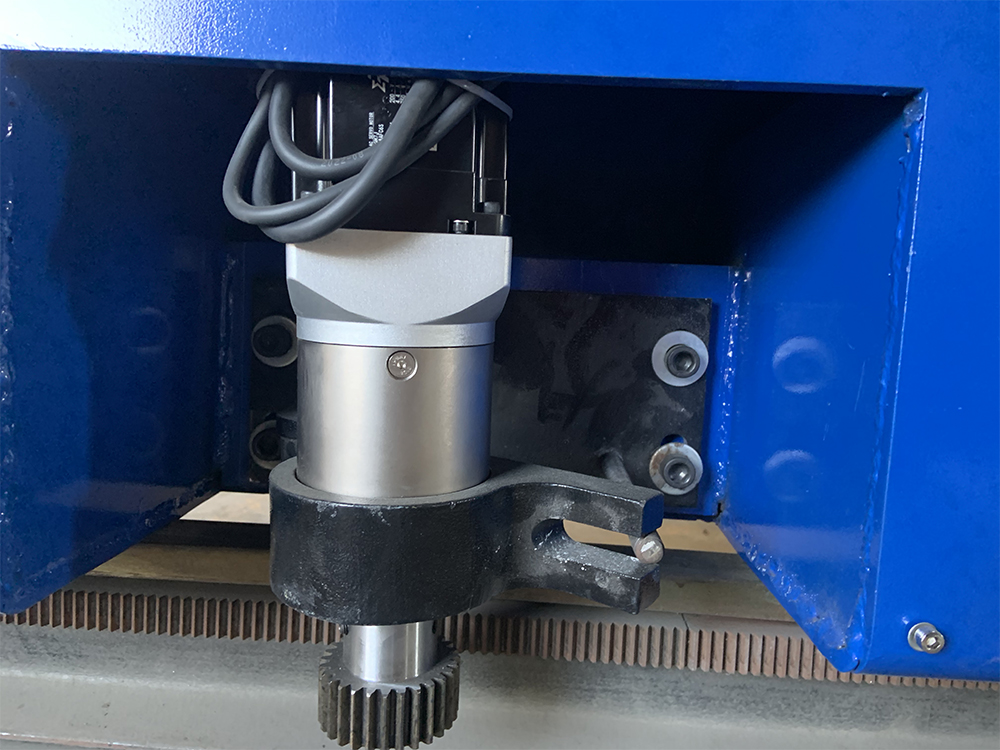

◀Adopt high speed rack pinion transmission and Japan Yaskawa Servo motor & Shimpo reducer | |

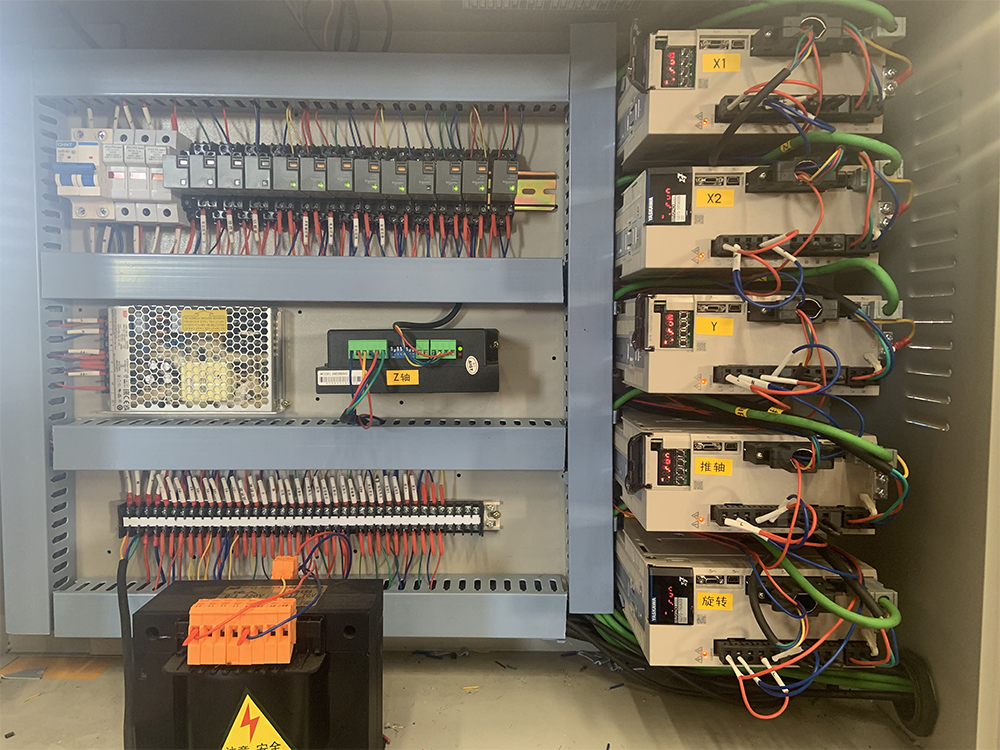

Electrical control cabinet, complete Yaskawa servo drivers▶ |
