WS-R1325
1300x2500mm
4.5kw/5.5kw
Stepper/Servo
DSP
Vacuum +T-slot
Artcam,JDpaint,Ucancam
Product Description
WS-R1325 1325 Wood 3D Engraving Woodworking CNC Router With 4 Axis Rotary
WS-R1325 1325 Wood 3D Engraving Woodworking CNC Router With 4 Axis Rotary Applications:
Wisdom Woodworking CNC Router,enjoying a high reputation in the market, is popular with many customers from different countries.
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
WS-R1325 1325 Wood 3D Engraving Woodworking CNC Router With 4 Axis Rotary Features:
1. Lathe bed adopts strong welded steel tube to avoid distortion.
2. Control system: DSP handle control, support offline operation, even there is sudden electricity power-off, you needn't reset from beginning. NC Studio and ShanLong control system option.
3. Guide rail: HIWIN linear rail from Taiwan, smooth and precise transmission, low noise, lifetime is 10 times longer than common rail way.
4. Working table: Strong vacuum table match with oil vacuum pump, big suction to fix materials.
5. China stepper or Servo motor and drivers, ensure good machine stability. Other Japan Panasonic or Yaskawa servo motors and drivers option.
6. High speed machining: the curve and straight speed is the same, the idle speed can reach 30m/minute, the cutting speed can reach 10m/minute.
7. Weight loading and redundancy are high, the working life is long: three axes adopt the imported line square guide rail with the high precision, axis Y adopts the double engine driving, the rigidity of machine is strong, the potency dimension is powerful, the turn is balanced.
8. Compatibility of software: it may be compatible with all kinds of software, such as JINGDIAO, Type3, Artcam, Castmate, CAD, and CAM design software etc.
WS-R1325 1325 Wood 3D Engraving Woodworking CNC Router With 4 Axis Rotary Technical specification:
Model | WS-R1325 | WS-R1530 |
Working area | 1300x2500mm or 1500x3000mm | |
Spindle power | 3.5kw /4.5kw | 3.5kw /4.5kw |
Spindle speed | 0~24000rpm/min | |
Inverter | 3.7kw /5.5kw | 3.7kw /5.5kw |
Driving system | Stepper /Servo motor and drivers | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | DSP control system | |
Dust collector | 3.0kw with double bags | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | Vacuum fixing | |
Gantry | Wholly cast steel | |
Lathe bed | Thicken steel tube | |
Electronic parts | Schneider | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 25000mm/min | |
Max Working speed | 15000mm/min | |
Working voltage | 380v 220v/ 50/60HZ | |

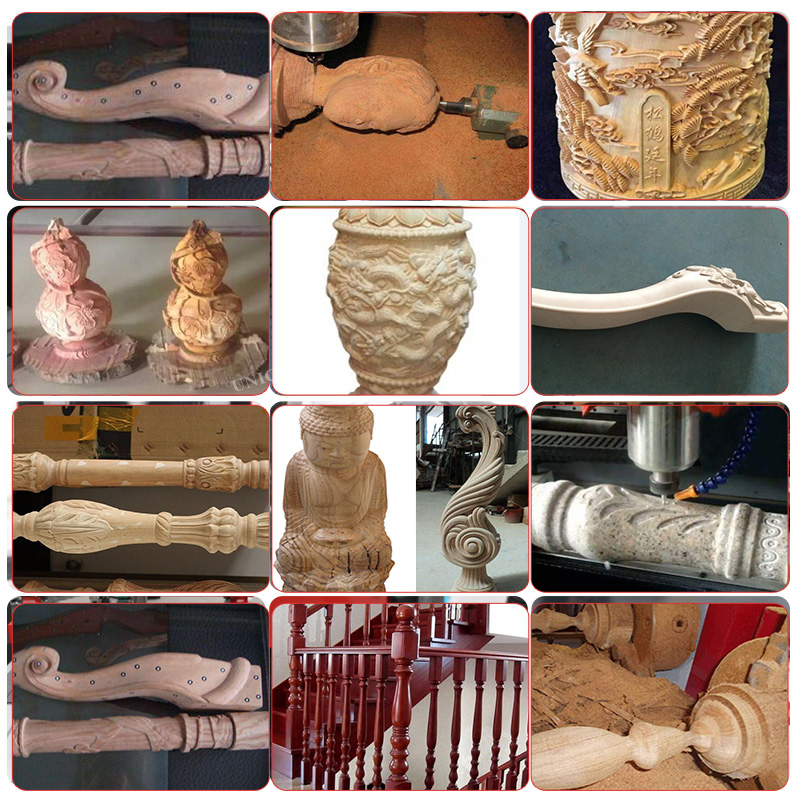

WS-R1325 1325 Wood 3D Engraving Woodworking CNC Router With 4 Axis Rotary Samples
After-Sales Service
1. Two years quality guaranty,the machine with parts shall be changed free of charge when if any problem during the warranty period (excluding the consumables).
2. Wholfe Life time maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day,free technical support.
5. Machine has been installed and tested well before shipping.
6. Provide technical service to the door.
Company Information
Company introduction:
Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer and supplier in China integrating manufacture, research, marketing and service. We design, develop and manufacture CNC router machine (CNC wood router, stone engraving machine, metal engraving machine, 3 axis CNC router, 4 axis CNC router, 5 axis CNC router, 3D CNC router, CNC milling machine), CNC wood turning lathe, CO2 laser engraving and cutting machine, laser marking machine, fiber laser cutting machine, plasma cutting machine, etc.
Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.
We make use of the rich Internet information, integrate global market resource, and create a unique marketing and brand promoting mode belonging to "Wisdom". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.
Packing and Delivery
Packaging and delivery:
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
FAQ
FAQ:
A. This is our first cooperation with you, are you believable?
First we are legal China company, with complete formalities.
Second we have been in cnc business industry for 8 years, with long term cooperated agent and end client, and we work for exporting for 8 years, we deal all based on machine quality and honest service.
Third, we can deal from alibaba assurance which can make sure your quality and delivery, we accept all the supervision from the third party.
B. how to select the cnc router machine for our first time?
We will select suitable machine according to your detailed work, better show me your sample picture.Then please tell me the machine size you want, we can customed for you.
Last about the configuration we will make decision according to your work and budget.
C. How to deal with you?
We will make a PI according to our negociate with you about the machine details.
Then you can arrange prepayment for us, after we receive prepayment, we will arrange the manufacture, when machine done, we will take pictures and videos for you, if you satisfy please arrange the balanced payment, then i will arrange ship for you.
D. What's the warranty?
We will provide full 24 months warranty, and whole life time free service. Video call, online support, email communications, Teamviewer support are available.
E. how to learning machine?
We will provide operation manual and working video to guide you how to use it. Our engineer always support as well.
F. How to choose cnc router machine?
1. please tell us your processing material type?tell us your processing material type.
---For wood,acrylic,plywood,mdf,etc nonmetal materials engraving and cutting, choose standard cnc router with vacuum bed or T-slot bed
---for aluminum soft metal or stone marble materials engraving and cutting, cnc router with water groove table optional.
2. please tell us your material size?
We have standard size 600x900mm,1200x1200mm,1300x2500mm, 1500x3000mm, 2000x3000mm, 2000x4000mm,etc.
