WS-R1325
1300x2500mm
4.5kw/5.5kw
Servo
DSP
Vacuum +T-slot
Product Description
Wisdom 4 Axis Wood Rotary CNC Routerr, woodworking cnc router enjoying a high reputation in the market, is popular with many customers from different countries.
1, Woodworking industry:
4 Axis Wood Rotary CNC Router is used for engraving carving and cutting three dimensional wave plate processing, cupboard doors, wooden doors, window processing, vedio game cabinets and panels,Computer table and furniture auxiliary processing.
2, Advertising industry:
4 Axis Wood Rotary CNC Router is for processing advertising signs, logo production, acrylic, plastic cutting, production of decorative materials, forming system module, etc.
3, Furniture industry,
4 Axis Wood Rotary CNC Router widely used for making solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden.
1. 4 Axis Wood Rotary CNC Router lathe bed adopts strong welded steel tube to avoid distortion.
2. 4 Axis Wood Rotary CNC Router control system:DSP A18 four axis control system, not only can carve round columns, but also statue, figure and other irregular products. Read G code generated by artcam, type3, ucancam, powermill, rhino, mastercam, vcarve,etc.
3. 4 Axis Wood Rotary CNC Router guide rail: High precision Hiwin square guide rails and TBI ball screw transmission. It ensures stable running, high precision and fast speed.
4. 4 Axis Wood Rotary CNC Router working table: Strong vacuum table match with oil vacuum pump, big suction to fix materials.
5. The rotary put at side of the machine body. It does not cover the space of flat table, easy to load and unload material.
Model | WS-R1325 | 4 Axis Wood Rotary CNC Router |
Working area | 1300x2500mm (4x8ft) | |
Spindle | 4.5kw | Air-cooling type |
Spindle speed | 0~24000rpm/min | |
Inverter | 5.5kw | Fuling brand |
Driving system | Stepper (Servo option) | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | DSP A18 4 axis control system | |
Dust collector | 3.0kw with double bags | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | Vacuum +T-slot fixing | |
Gantry | Wholly cast steel | |
Lathe bed | Thicken steel tube | |
Electronic parts | Schneider | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 25000mm/min | |
Max Working speed | 15000mm/min | |
Working voltage | 380v 220v/ 50/60HZ 3PH |
4 Axis Wood Rotary CNC Router Machine details:

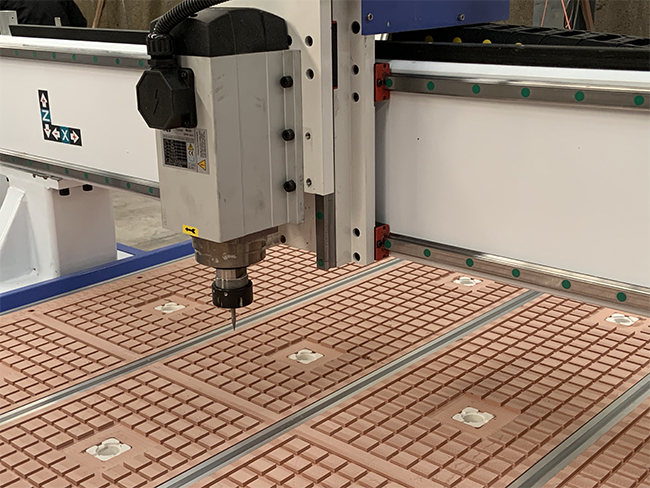

◀ 4.5kw HQD air-cooling spindle | |
Rotary 4 axis attachment for cylinders engraving ▶ | |

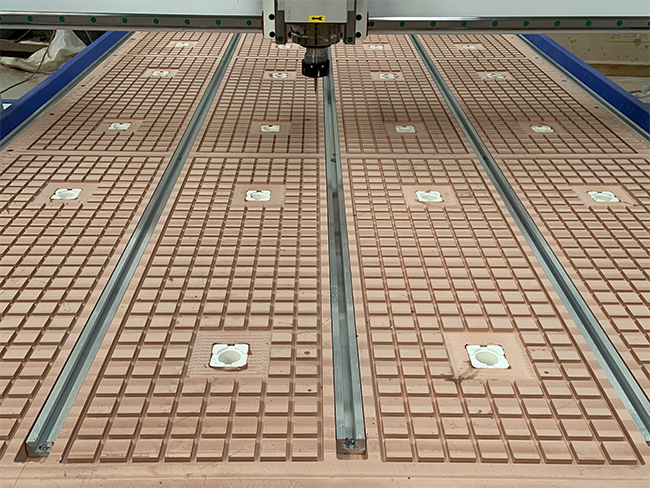

◀Vacuum table and T-slot fixing | |

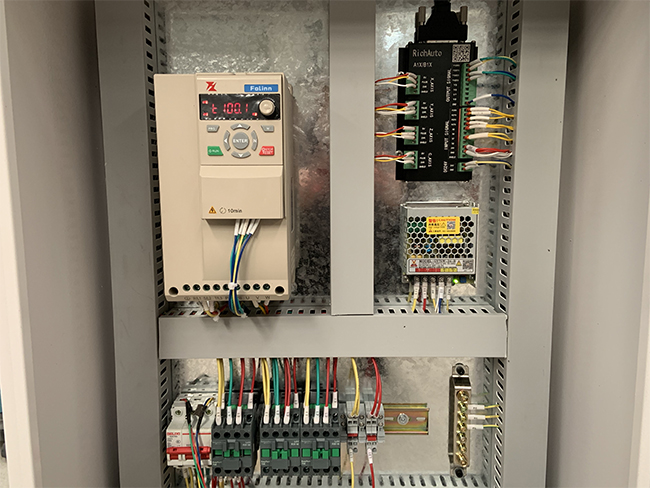

Fuling inverter▶ |
For detailed specifications and working videos, please contact with us by email or whatsapp.
Wood /Plywood /Mdf | √ |
ACP/ACM/HPL | √ |
Aluminum/Brass | √ |
Acrylic/Plastic/PVC | √ |
Double-color board/plate/panel | √ |
Cylinders | √ |
Company Information
Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.
We make use of the rich Internet information, integrate global market resource, and create a marketing and brand promoting mode belonging to "Wisdom CNC". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.
Packing and Delivery
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
FAQ
A. This is our first cooperation with you, are you believable?
First we are legal China company, with complete formalities.
Second we have been in cnc business industry for 8 years, with long term cooperated agent and end client, and we work for exporting for 8 years, we deal all based on machine quality and honest service.
Third, we can deal from alibaba assurance which can make sure your quality and delivery, we accept all the supervision from the third party.
B. how to select the cnc router machine for our first time?
We will select suitable machine according to your detailed work, better show me your sample picture.Then please tell me the machine size you want, we can customed for you.
Last about the configuration we will make decision according to your work and budget.
C. How to deal with you?
We will make a PI according to our negociate with you about the machine details.
Then you can arrange prepayment for us, after we receive prepayment, we will arrange the manufacture, when machine done, we will take pictures and videos for you, if you satisfy please arrange the balanced payment, then i will arrange ship for you.
D. What's the warranty?
We will provide full 24 months warranty, and whole life time free service. Video call, online support, email communications, Teamviewer support are available.
E. how to learning machine?
We will provide operation manual and working video to guide you how to use it. Our engineer always support as well.
