WS-S1530D
1500X3000mm
double 5.5kw
Stepper/Servo
DSP/NC Studio
Water groove +T-slot
Artcam,JDpaint,Ucancam
Product Description
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving, used for 2D/3D carving engraving stone,marble,granite,marble,ceramic,etc. 5.5kw powerful spindle, 2D/3D Stone engraving machine.
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving Applications:
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving Machine,enjoying a high reputation in the market, is popular with many customers from different countries.
Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture, etc.
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving Features:
1. Machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better .
2. Dual motor drive for Y-axis, moving stably.
3. DSP control with good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9.
4. Constant spindle motor power, strong cutting strength, high efficiency.
5. High precision rack transmission, fast speed.
6. Imported linear square guide way, double row four row slider, high precision, long life time.
7. Well selected electrical accessories, let the failure rate to the minimum.
8. With water and automatic water supply and cooling system.
9. Dustproof and waterproof design, better to protect the machine driving part.
10. Rotary device for option. A rotary device includes a fixed body and a shaft. as 4th axis of CNC router, it could work instead of X or Y axis for column Processing, such as chair jamb, stair jamb, roman column, pillar etc. The column diameter it fixes could be from 10mm to 300mm, material could be wood, marble, foam etc.
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving Advantages:
#Double 5.5kw powerful water cooled spindle, Leadshine stepper or servo motor drivers
#Double Fuling inverter, high end automatic digital oil lubrications system
#Professional assistant wheels for stone loading
#Stainless steel water groove table, keep water circulation
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving specification:
Model | WS-S1325 | WS-S1530 |
Working area | 1300x2500mm or 1500x3000mm | |
Spindle power | 5.5kw | 5.5kw |
Spindle speed | 0~24000rpm/min | |
Inverter | 5.5kw | 5.5kw |
Driving system | Stepper /Servo motor and drivers | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | DSP/NC Studio control system | |
Water table | Groove with water sprayer system | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | T-slot and stainless steel water groove | |
Gantry | Wholly cast steel | |
Lathe bed | Thicken steel tube | |
Electronic parts | Schneider | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 25000mm/min | |
Max Working speed | 15000mm/min | |
Working voltage | 380v 220v/ 50/60HZ | |
WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving Machine Parts

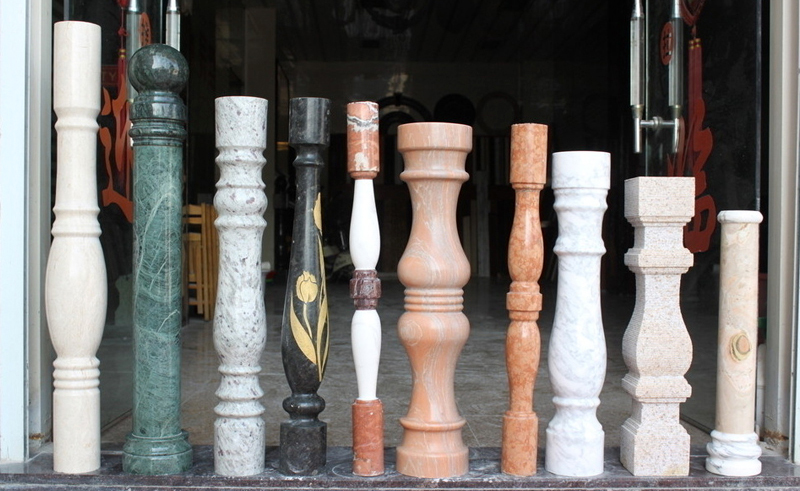

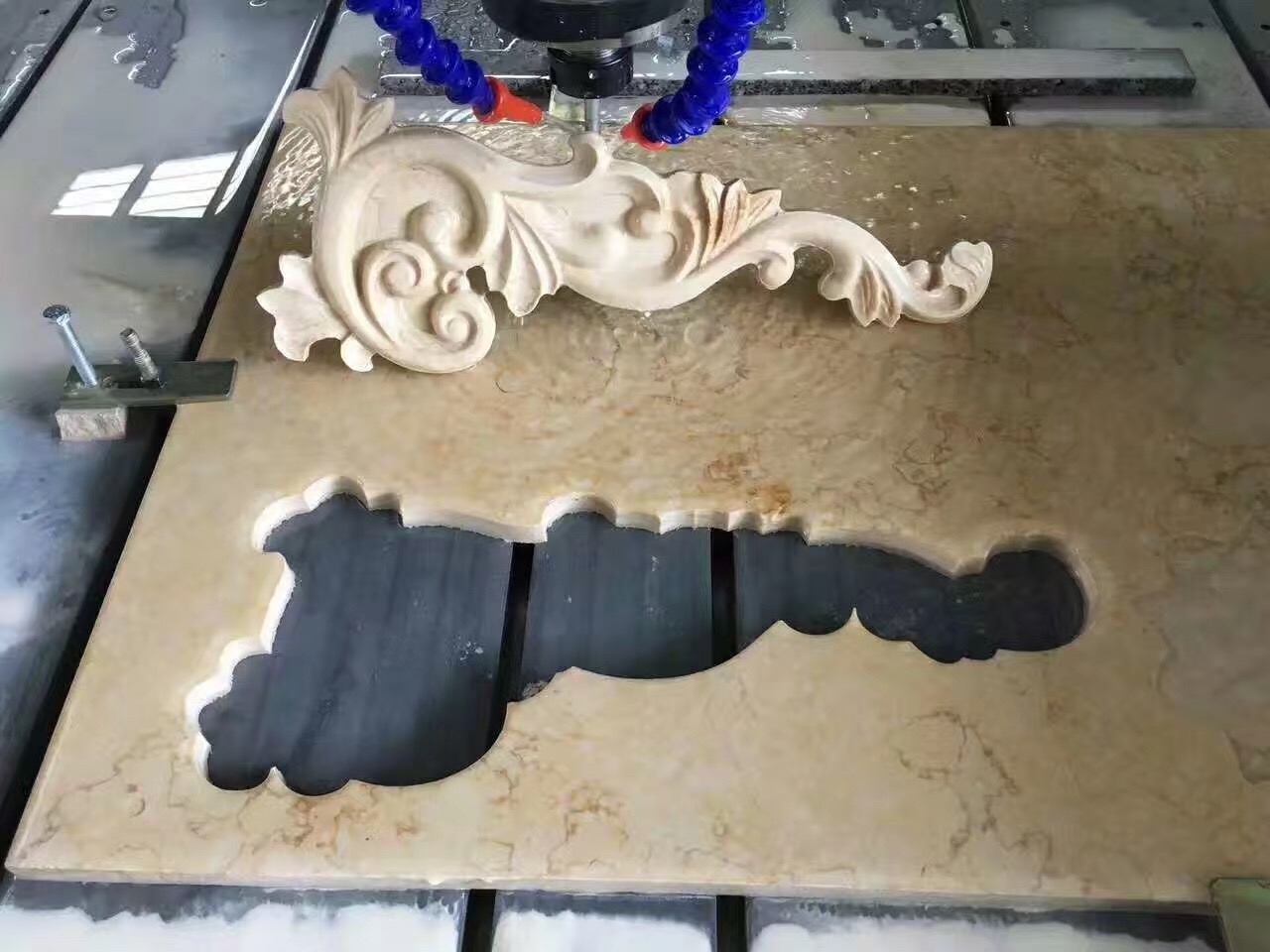

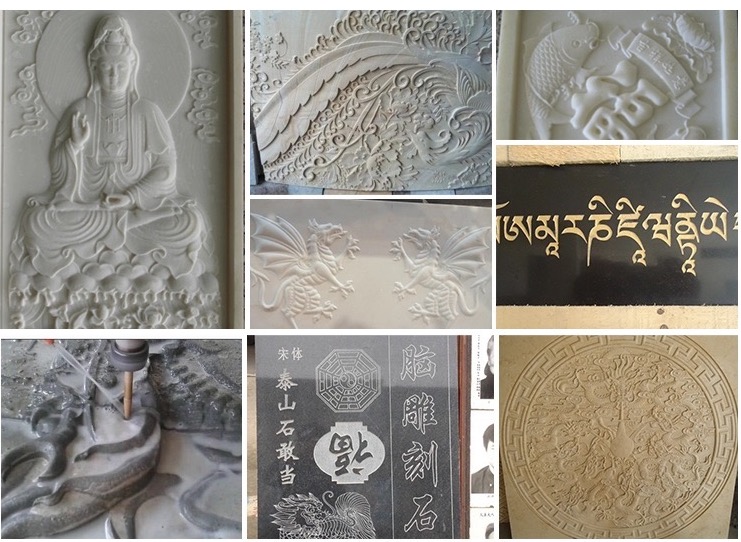

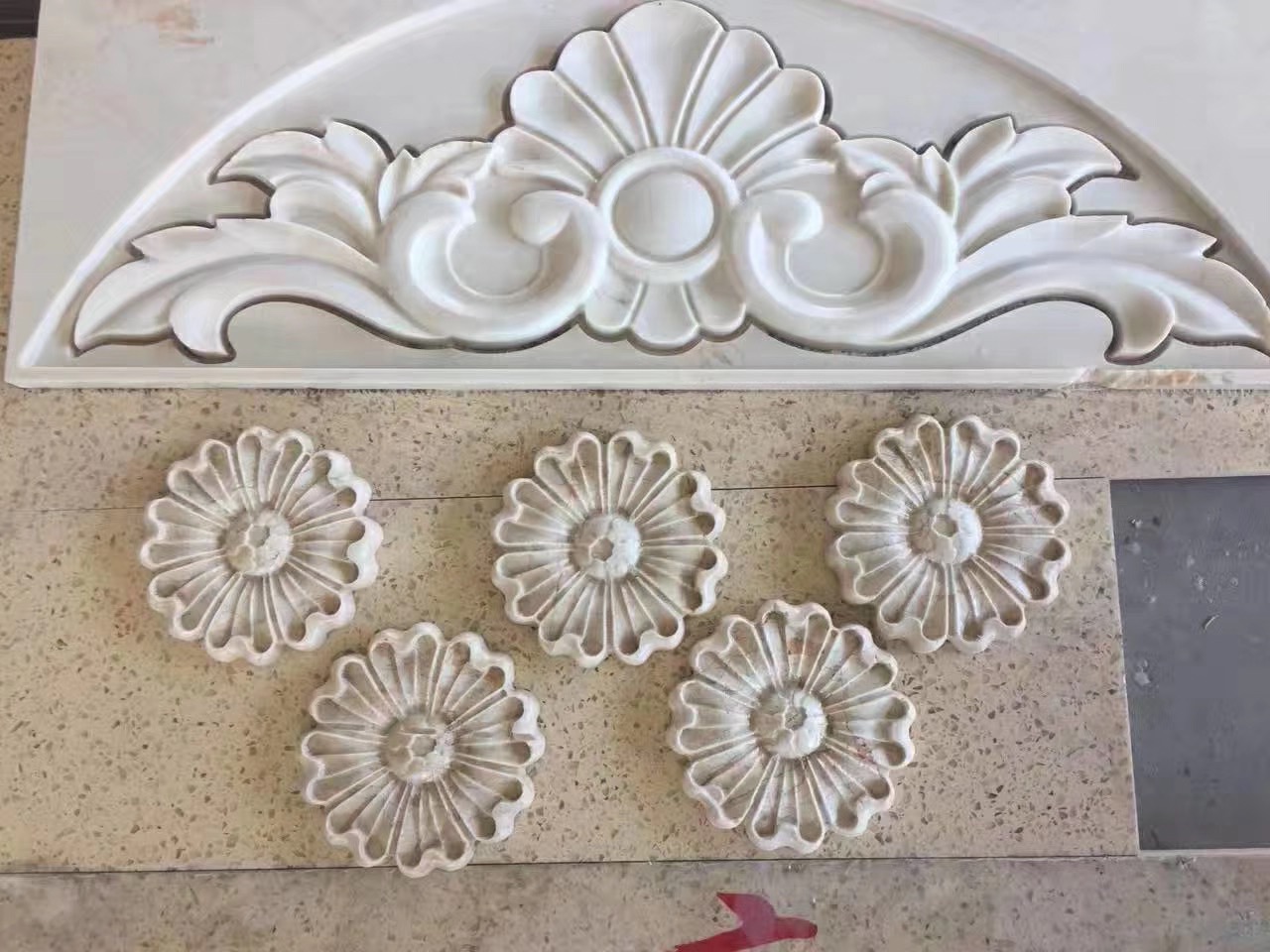

WS-S1530 Dual head Stone CNC Router For 3d Stone Engraving Carving Samples
After-Sales Service
1. Two years quality guaranty,the machine with parts shall be changed free of charge when if any problem during the warranty period (excluding the consumables).
2. Wholfe Life time maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day,free technical support.
5. Machine has been installed and tested well before shipping.
6. Provide technical service to the door.
Company Information
Company introduction:
Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer and supplier in China integrating manufacture, research, marketing and service. We design, develop and manufacture CNC router machine (CNC wood router, stone engraving machine, metal engraving machine, 3 axis CNC router, 4 axis CNC router, 5 axis CNC router, 3D CNC router, CNC milling machine), CNC wood turning lathe, CO2 laser engraving and cutting machine, laser marking machine, fiber laser cutting machine, plasma cutting machine, etc.
Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.
We make use of the rich Internet information, integrate global market resource, and create a unique marketing and brand promoting mode belonging to "Wisdom". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.
Packing and Delivery
Packaging and delivery:
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
FAQ
FAQ:
A. This is our first cooperation with you, are you believable?
First we are legal China company, with complete formalities.
Second we have been in cnc business industry for 8 years, with long term cooperated agent and end client, and we work for exporting for 8 years, we deal all based on machine quality and honest service.
Third, we can deal from alibaba assurance which can make sure your quality and delivery, we accept all the supervision from the third party.
B. how to select the cnc router machine for our first time?
We will select suitable machine according to your detailed work, better show me your sample picture.Then please tell me the machine size you want, we can customed for you.
Last about the configuration we will make decision according to your work and budget.
C. How to deal with you?
We will make a PI according to our negociate with you about the machine details.
Then you can arrange prepayment for us, after we receive prepayment, we will arrange the manufacture, when machine done, we will take pictures and videos for you, if you satisfy please arrange the balanced payment, then i will arrange ship for you.
D. What's the warranty?
We will provide full 24 months warranty, and whole life time free service. Video call, online support, email communications, Teamviewer support are available.
E. how to learning machine?
We will provide operation manual and working video to guide you how to use it. Our engineer always support as well.
F. How to choose cnc router machine?
1. please tell us your processing material type?tell us your processing material type.
---For wood,acrylic,plywood,mdf,etc nonmetal materials engraving and cutting, choose standard cnc router with vacuum bed or T-slot bed
---for aluminum soft metal or stone marble materials engraving and cutting, cnc router with water groove table optional.
---please tell us your material size?
We have standard size 600x900mm,1200x1200mm,1300x2500mm, 1500x3000mm, 2000x3000mm, 2000x4000mm,etc.Other size can be done as customized.
G.How do you send your CNC router machine?
They are firstly greased thoroughly and packaged in a free-fumigation wooden crate.
Usually, we send machine by ship, sometimes, as customer’s requirement, send by air or by train.
When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered.
Or we can arrange the cargo agent to send goods to your door.
H.Does machine comes with software?
Yes, we offer intelligent and compatible software with machine, so it will be more convenient for you to operate machine.
I. Do you offer training about products?
Yes, customer could get free training at our factory; or we can assign technician arrive at customer’s company for the training at some charge, and accommodation, food, tickets will be charged.
