Product Description
Control System | STARFIRE |
Driving System | Stepper motor and drivers Optional: Servo motor and drivers |
Power Supplier | US Hypertherm China Huayuan |
Relay accessories | Schneider |
Guide Rail and transmission | HIWIN square guide rails and rack pinion transmission |
THC( torch height controller ) | Automatic |
Cutting Torch Lifting Mode | Arc Voltage Height Controller |
Plasma Torch | 1 unit |
Flame Torch | 1 unit |
Nesting Software | FASTCAM |
Packing type | Standard plywood case |
Model | WS-P2040, WS-P2060, WS-P3060 |
Working Size | 2x4m, 2x6m, 3x6m |
Cutting Speed | 0-12000mm/min |
Plasma Cutting Thickness | 0-30mm |
Flame Cutting Thickness | 10-300mm |
Power source | Powermax 45A /85A /105A /125A /200A US Hypertherm LGK 63A /100A /120A /160A /200A China Huayuan |
Working position accuracy | ±0.1mm |
File output mode | USB interface |

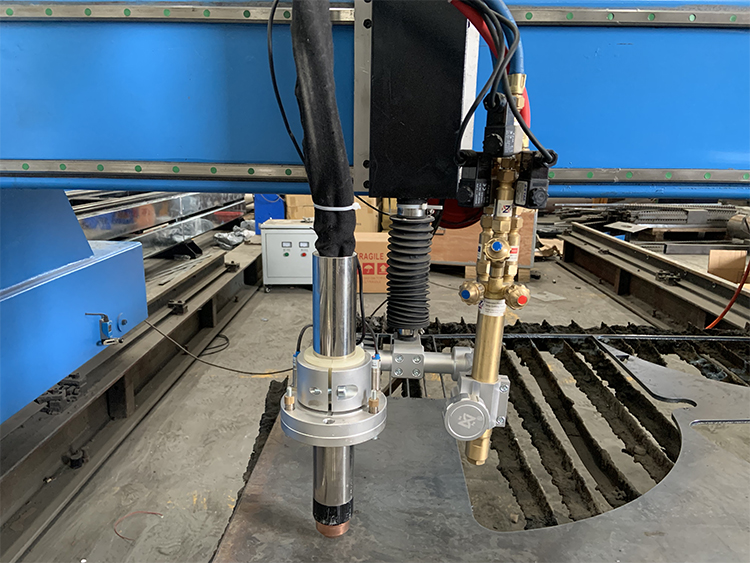

◀ Plasma and flame cutting head | |

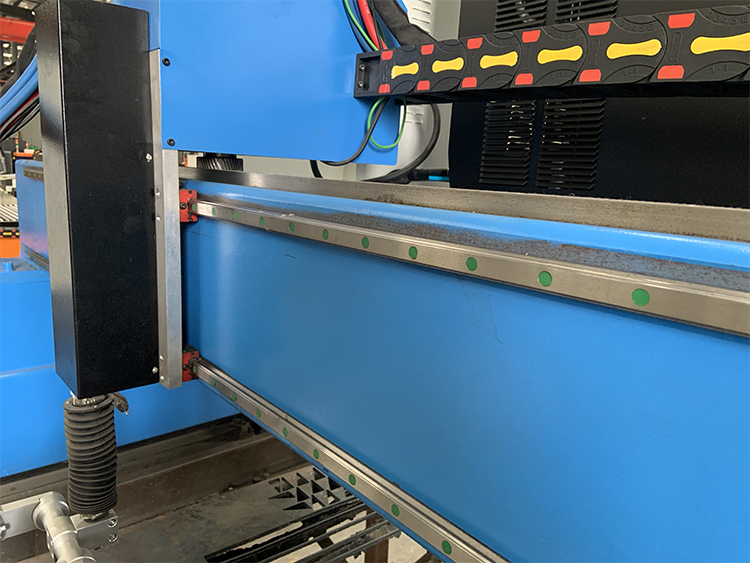

Hiwin Square guide rail and linear rack pinion transmission ▶ | |

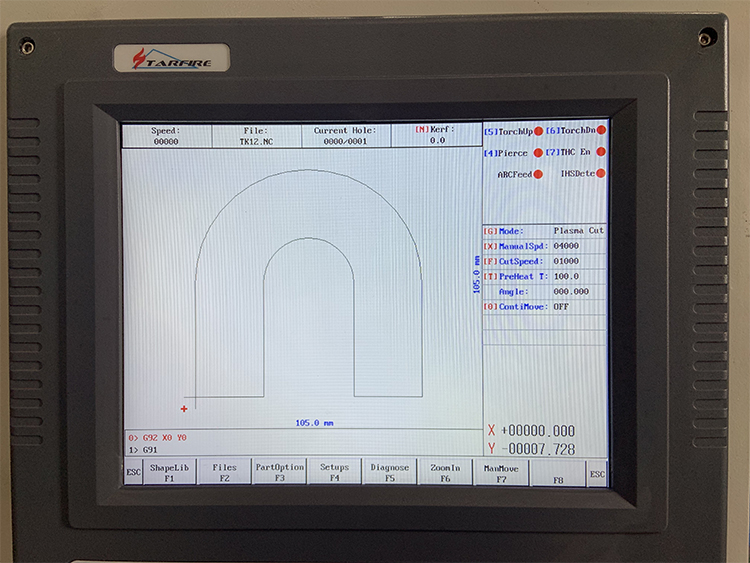

◀Starfire control system | |
300A plasma source and water chiller cooling ▶ |
