Product Description

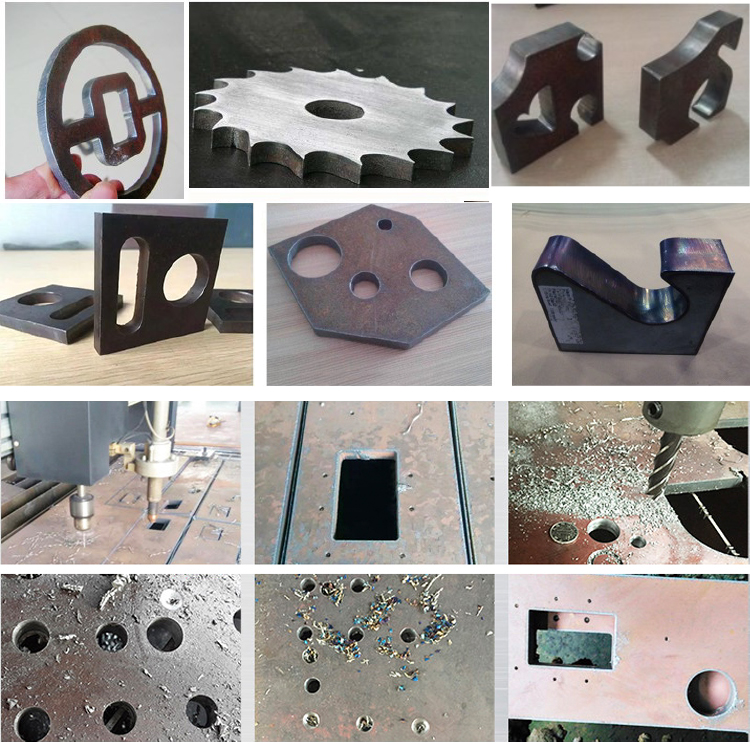

All kinds of metal materials such as steel, copper, aluminum, stainless steel, iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plates, and so on.
Applies in cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.
Model | WS-P1530 |
Working area | 1500*3000mm Optional size: 2000x3000mm or as customized |
Head | Plasma cutting torch Option: Flame cutting, Marking, Drilling |
Usage | Metal cutting industry |
Nesting software | Fastcam /TubeMaster |
THC | Torch Height Controller |
Repeat positioning accuracy | ±0.05mm |
Process precision | ±0.3mm |
Transmission system
| Square guide rail |
Rack pinion | |
Max. cutting speed | 6000mm-90000mm/min |
Working voltage | AC380 /220V 3PH 50 /60HZ |
Control system | Starfire /Fangling control system |
Instruction format | G code |
Drive system | Stepper motor and drivers Optional: Servo motor and drivers |
Drive mode | Double side driving motor |
File output mode | USB interface |
Plasma source | 63A/100A/120A/160A/200A/300A optional |
Cutting thickness | 0-30mm by plasma 10-300mm by flame |
◀ Heavy steel tube gantry | |

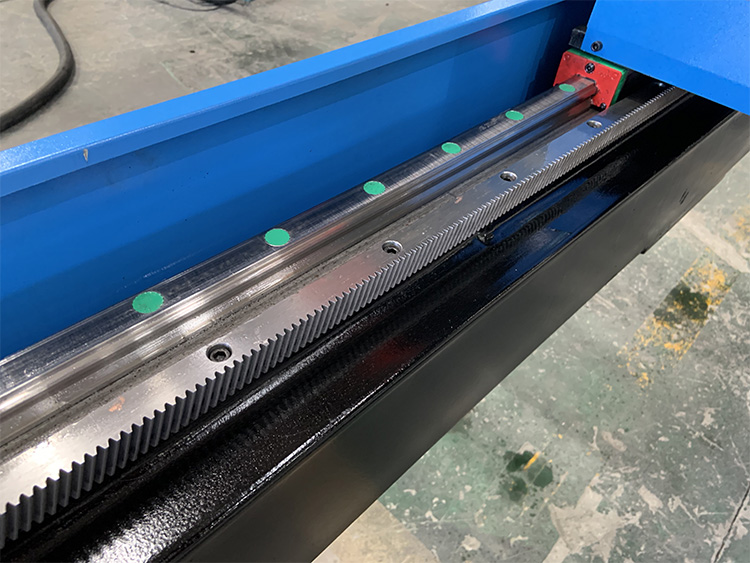

Hiwin Square guide rail and linear rack pinion transmission ▶ | |

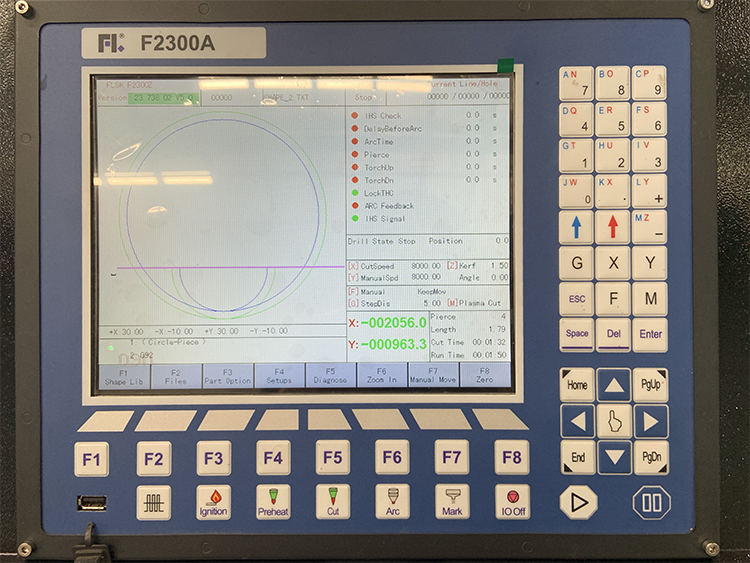

◀Fangling control system | |
Rotary attachment for tube cutting ▶ | |

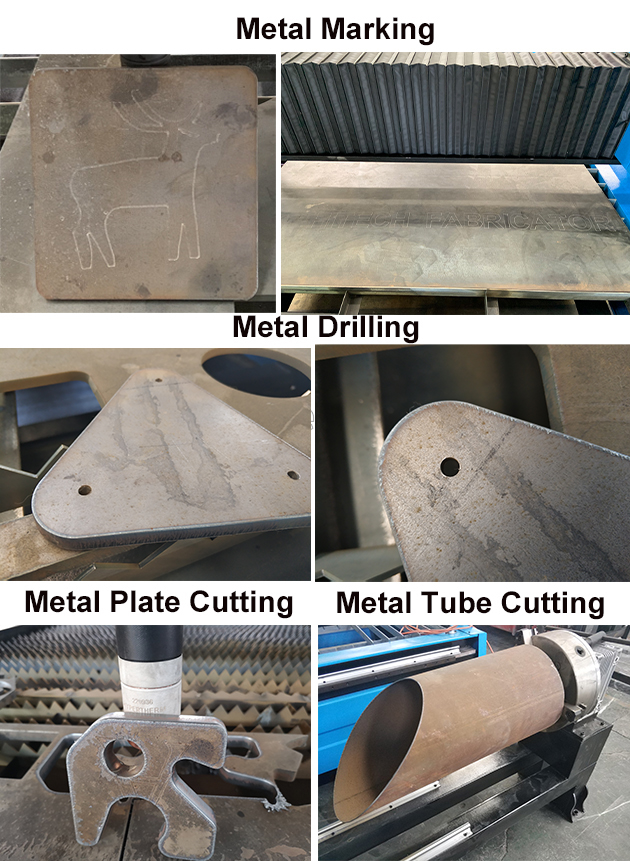

◀Multi-tools optional: drilling head, marking head |
