Product Description
1. Mixed cutting: The metal and non-metal mixed laser cutting machine supports metal and non-metal cutting, can cut stainless steel, carbon steel, low carbon steel, and can also cut acrylic, wood, medium density fiberboard, PVC board, paper, cloth, etc.

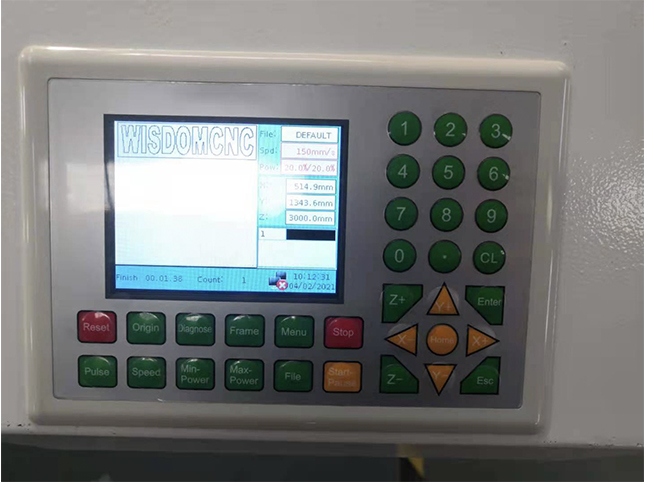

2. Advanced touch LCD screen matches professional cutting software, specially written for metal and non-metal cutting, humanized design, portable operation, and supports any computer operating system.
3. Large file storage space: 128M of cutting and engraving files can be stored in the metal and non-metal mixed cutting machine, compatible with AutoCAD, CorelDraw, Photoshop and some other types of graphics processing software.

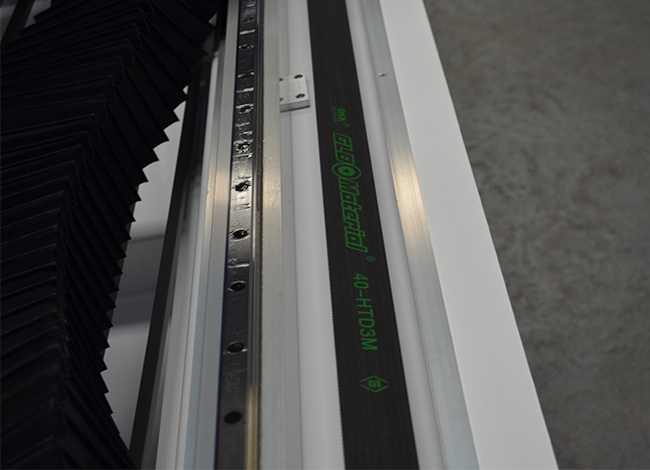

4. Imported high-precision linear guide and professional optical system are dustproof and lubricated, thereby improving the quality of engraving and extending the life cycle of the metal and non-metal hybrid cutting machine.
5. The alarm protection and cooling water system adopts the chiller temperature display to avoid excessive combustion and protect the circuit and water circulation circuit.
| Model | WS-H1325 |
| Working size | 1300*2500mm |
| Laser power | 150w/180w/220w/300w |
| Transmission system | High quality belt and Taiwan PMI guide rail |
| Laser type | CO2 sealed |
| Cooling type | Water-cooling |
| Working table | Thicken blade |
| Laser output | 0-100% control |
| Scaning precision | 4000DPI |
| Locating precision | ±0.02mm/m |
| Locating speed | 20m/min |
| Cutting thickness | 0-3mm metal; 0-30mm acrylic |
| Cutting speed | 0-6000mm/s |
| Control system | Ruida |
| Supported format | BMP, PLT, DST, DXF AND AI etc |
| Supported software | CORELDRAW, PHOTOSHOP, AUTOCAD, etc |
| Driving system | Three phase stepper motor |
| Power | <2000w |
| Working woltage | 220v single phase |
| Assistance device | Water chiller, exhaust fan, air pump |
| Packing size | 365x220x165cm |
| Weight | 800kgs |
| Consumable parts | Mirror and lens |
| Application | Material | Cutting | Engraving |
| Metal (0-3mm) | Mild Steel Carbon Steel Stainless Steel | √ √ √ | × |
| Non-metal (0-25mm) | Acrylic Wood Plywood MDF Plastic PVC Double-color board Rubber | √ √ √ √ √ √ √ √ | √ |
 |
|
|  |
 |
|
|  |

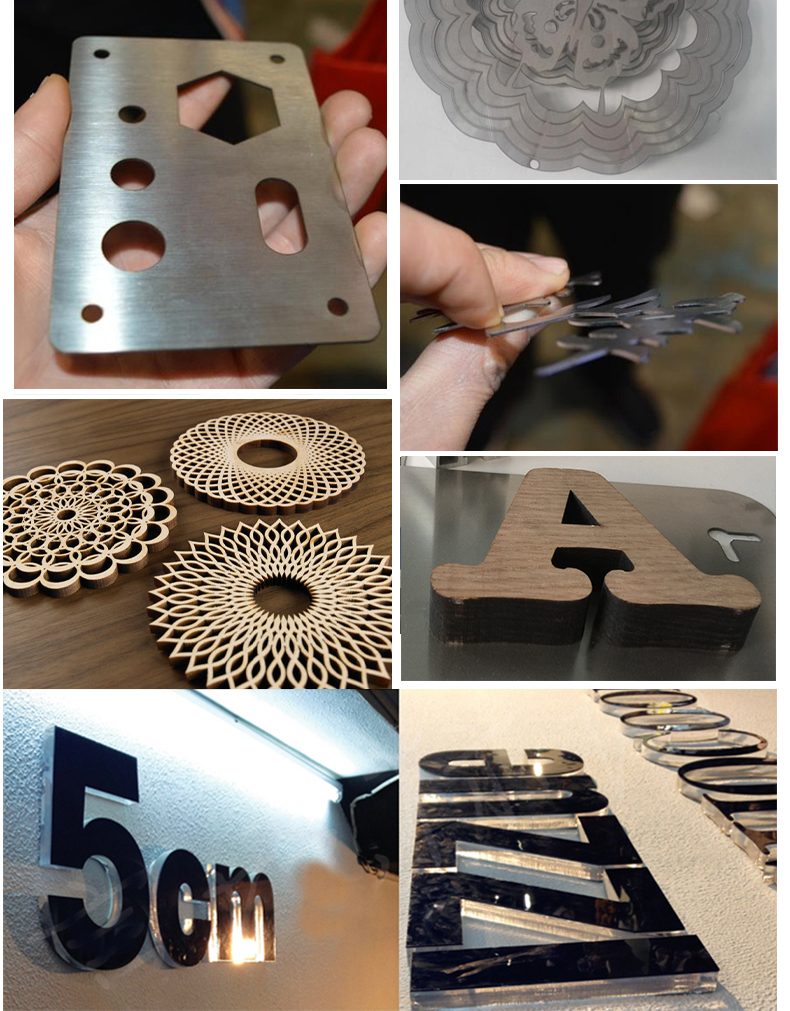

WS-H1325 Mixed Laser Cutting Machine for Metal And Wood Samples
